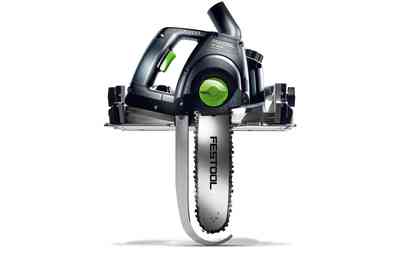

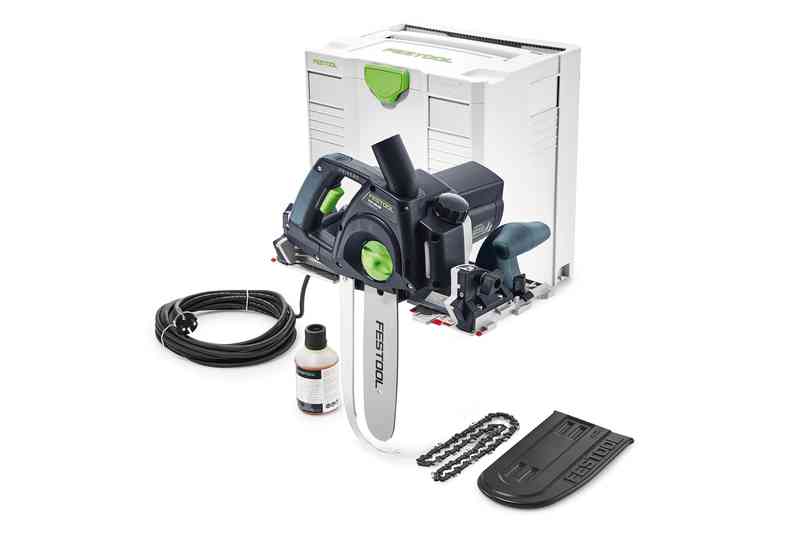

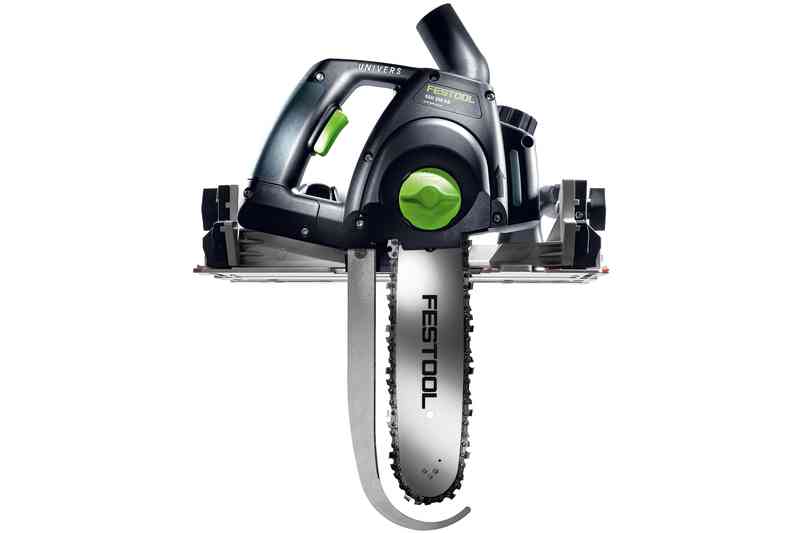

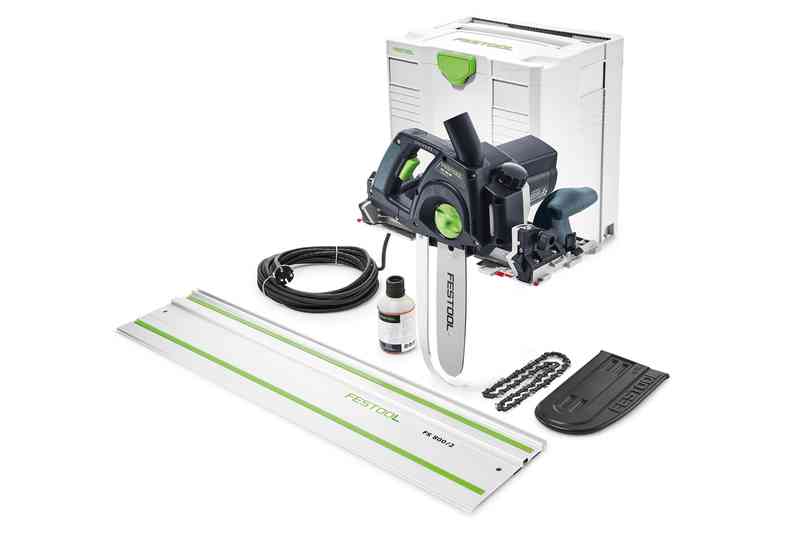

Sword saw UNIVERS SSU 200

ProductNameProductPriceBuyFavorites
FT-576563
SSU 200 EB-Plus
FT-576563
SSU 200 EB-Plus
1 426,81 €
FT-576565
SSU 200 EB-Plus-FS
FT-576565
SSU 200 EB-Plus-FS
1 515,40 €
Descrizione:

Usage

Main applications

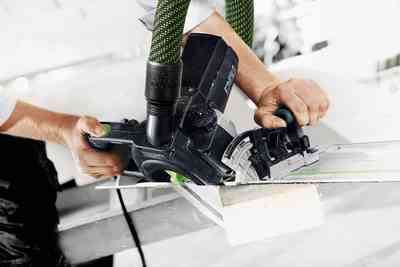

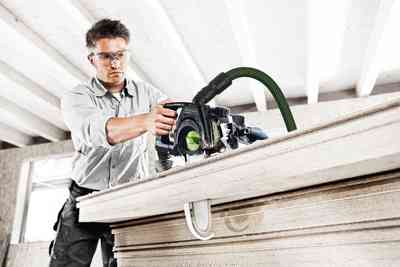

  • Cutting pressure-resistant insulating materials such as wooden fibreboards, PUR, polystyrene, etc.

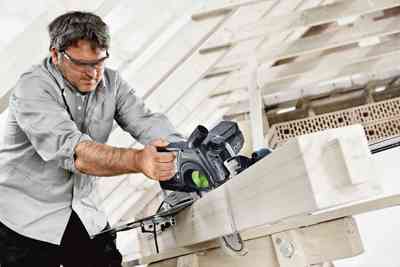

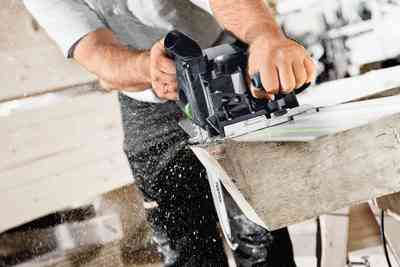

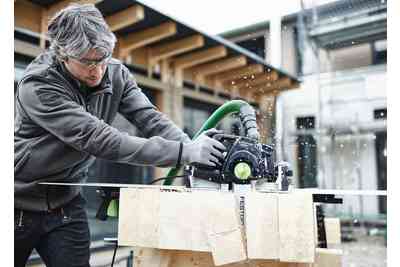

  • Chop, mitre, rip and jack-rafter cuts in wood.

Technical Data



Technical data
Power consumption
1 600 W
Idle engine speed
4 600 min⁻¹
Ctting depth 0°, 90°/45°/60°
200/140/100 mm
Mitre cuts
0 - 60 °
Cutting speed (idling)
10.60 m/s
Blade position
0 - 10 °
Weight
6.50 kg
Drive type
Mains
Performance features
  • MMC Multi Material Control electronics

    “Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.

  • Guide system

    Patented guide system for safe guidance of saws and router bits.

  • Electronic overload protection

    Protects the motor with blocking tool.

  • Electronic monitoring of the winding temperature

    Electronic monitoring of the coil temperature protects against damage to the motor.

  • Starting current limiter

    Simple start for household fuses.

  • Standard connection for dust extractors

    Standard connection for dust extractors.

  • Electro-dynamic run-down brake

    The chainsaw will stop immediately once the speed controller is released.

Noise and vibration values
Sawing: Total vibration average, Ah
3.40 m/s²
Sawing: Uncertainty (vibration) K
1.50 m/s²
Sawing: A-weighted sound power level, LWA
102.00 dB(A)
Sawing: Uncertainty (noise) K
3.00 dB
Sawing: A-weighted sound pressure level, LpA
91.00 dB(A)

Accessories
FT-491501
FS 3000/2
367,03 €
FT-768116
FS-RAPID/L
58,87 €
FT-768168
FS-AG-2
167,72 €
FT-769099
PA-A SSU 200
92,51 €
FT-491498
FS 1400/2
119,38 €
FT-769098
PA-SSU 200
53,23 €
FT-491499
FS 800/2
79,84 €
FT-769038
CO 1 L
12,81 €
FT-769066
GB 10"-SSU 200
74,47 €
FT-769100
SC 3/8"-90 I-39E
80,98 €
FT-769101
SC 3/8"-91 U-39E
39,93 €
FT-769102
SC 3/8"-91 F-39E
50,03 €
FT-769103
SC 3/8"-91 L-39E
50,03 €

*All the prices include 22% Italian VAT
