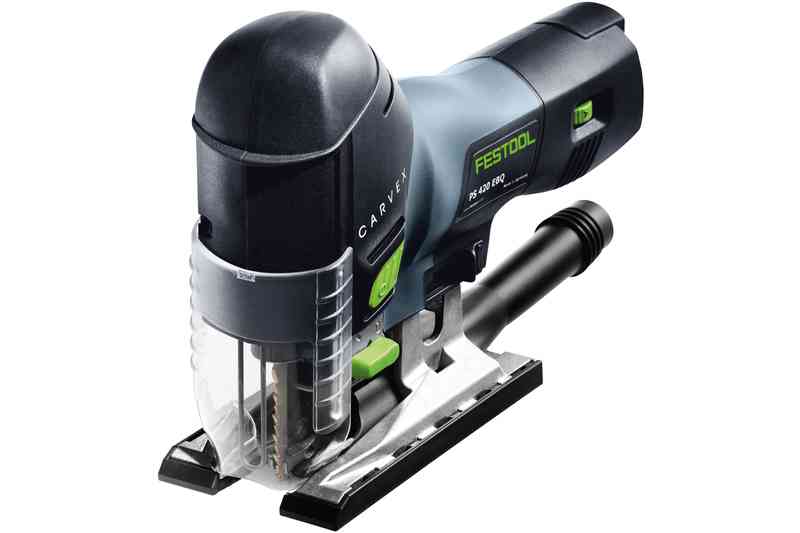

Pendulum jigsaw CARVEX PS 420

ProductNameProductPriceBuyFavorites
FT-576175

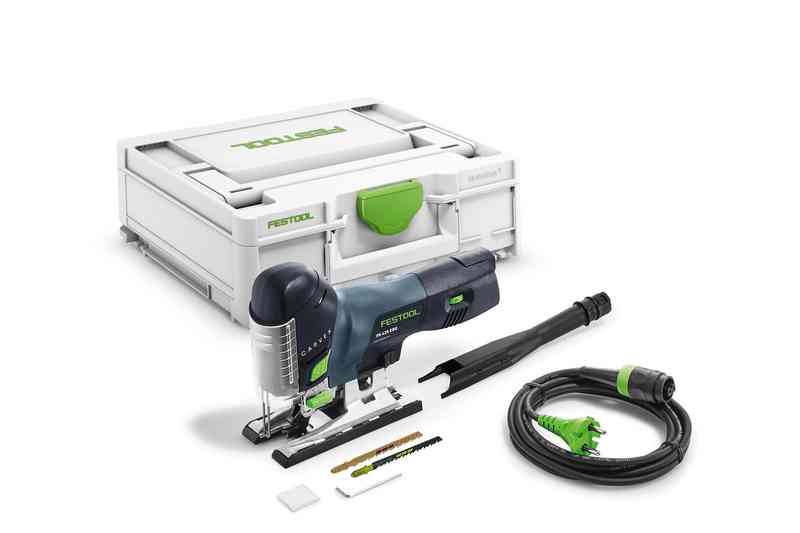

PS 420 EBQ-Plus
FT-576175
PS 420 EBQ-Plus
487,43 €
FT-576176

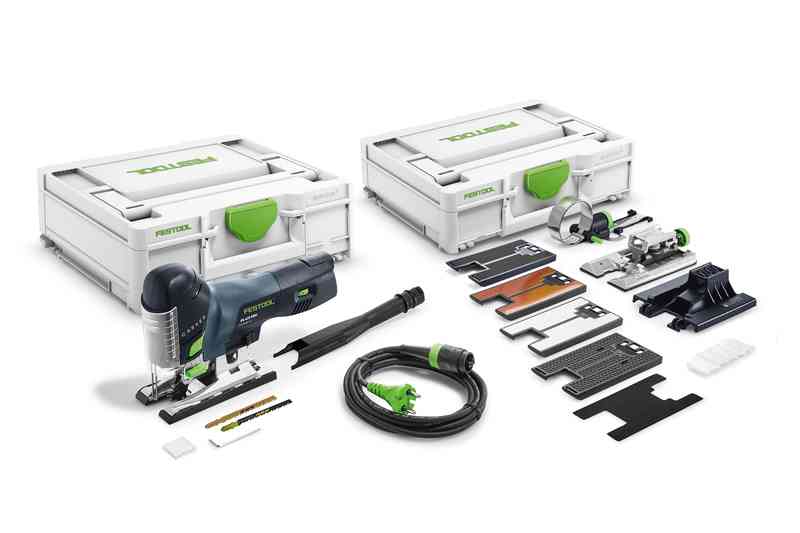

PS 420 EBQ-Set
FT-576176
PS 420 EBQ-Set
743,29 €
Descrizione:

Usage

Main applications

  • Cut-outs for sinks and kitchen hobs
  • Trimming work on furniture, kitchens, for interior fitting
  • Cutting circles and curves
  • Coping end strips
  • Cutting workpieces to length
  • Edge notching on beams

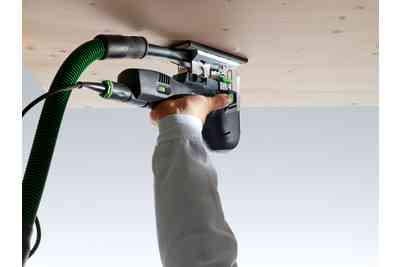

  • Cutting from below

Technical Data



Technical data
Power consumption
550 W
Stroke rate
1 500 - 3 800 min⁻¹
Pendulum cover adjustment in stages
4.00
Cutting depth in wood
120.00 mm
Cutting depth in NF metals
20.00 mm
Cutting depth in steel (soft)
10.00 mm
Weight
1.90 kg
Drive type
Mains
Performance features
  • Antistatic function

    Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

  • MMC digital electronics

    Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.

  • Jigsaw with precision guidance

    Long-wearing carbide jaws guide the saw blade directly over the cutting location. For precise work results.

  • Splinter guard

    Patented splinterguard for splinter-free cuts on both sides when sawing.

  • FastFix

    Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

  • Guide system

    Patented guide system for safe guidance of saws and router bits.

  • CLEANTEC

    Integrated bayonet fitting as the connecting element between the extractor and the tool.

  • Plug it

    Removable, replaceable mains cable with safety lock for quick conversion.

  • EC-TEC motor

    The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

Noise and vibration values
Sawing chipboard: Uncertainty (vibration) K
1.50 m/s²
Sawing chipboard: A-weighted sound power level, LWA
98.00 dB(A)
A-weighted sound pressure level, LpA
87.00 dB(A)
Sawing chipboard: Total vibration average, Ah
8.00 m/s²
Sawing chipboard: Uncertainty (noise) K
5.00 dB

Accessories
FT-496134
WT-PS 420
155,06 €
FT-497297
LAS-PS 420
13,70 €
FT-497298
LAS-Soft-PS 420
13,70 €
FT-497299
LAS-HGW-PS 420
20,48 €
FT-497300
LAS-St-PS 420
20,48 €
FT-497301
LAS-STF-PS 420
20,48 €
FT-497303
ADT-PS 420
19,44 €
FT-497304
KS-PS 420
64,73 €
FT-497443
KS-PS 420 Set
83,94 €
FT-203914
H05 RN-F-4
28,04 €
FT-203935
H05 RN-F4/3
54,51 €
FT-203899
H05 RN-F-5,5
30,60 €
FT-203920
H05 RN-F-7,5
34,17 €
FT-203937
H05 RN-F-10
44,02 €
FT-490120
SP-PS/PSB 300/5
8,58 €
FT-490121
SP-PS/PSB 300/20
16,01 €
FT-497444
EF-LAS-STF-PS 420
12,05 €

*All the prices include 22% Italian VAT
