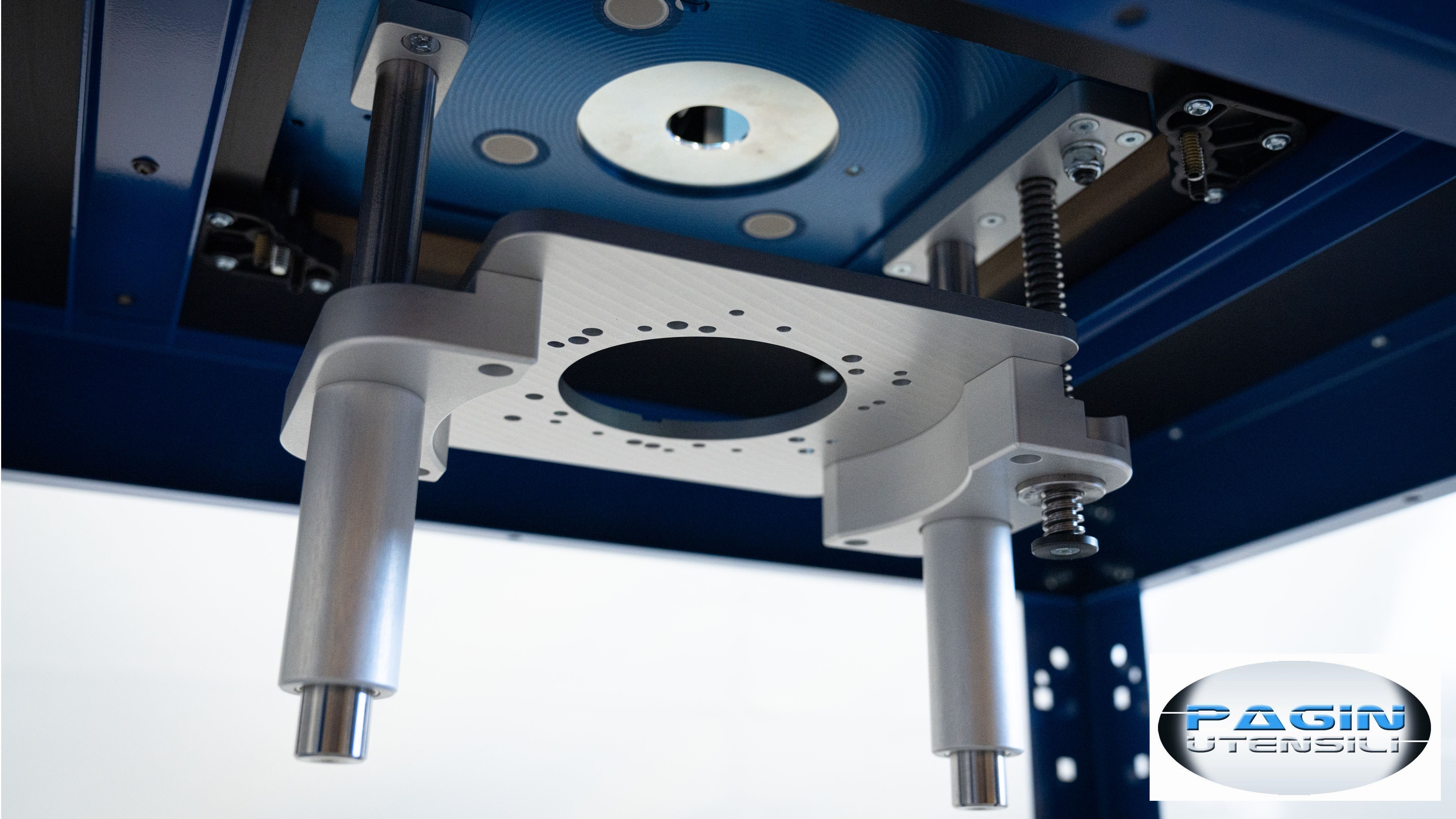

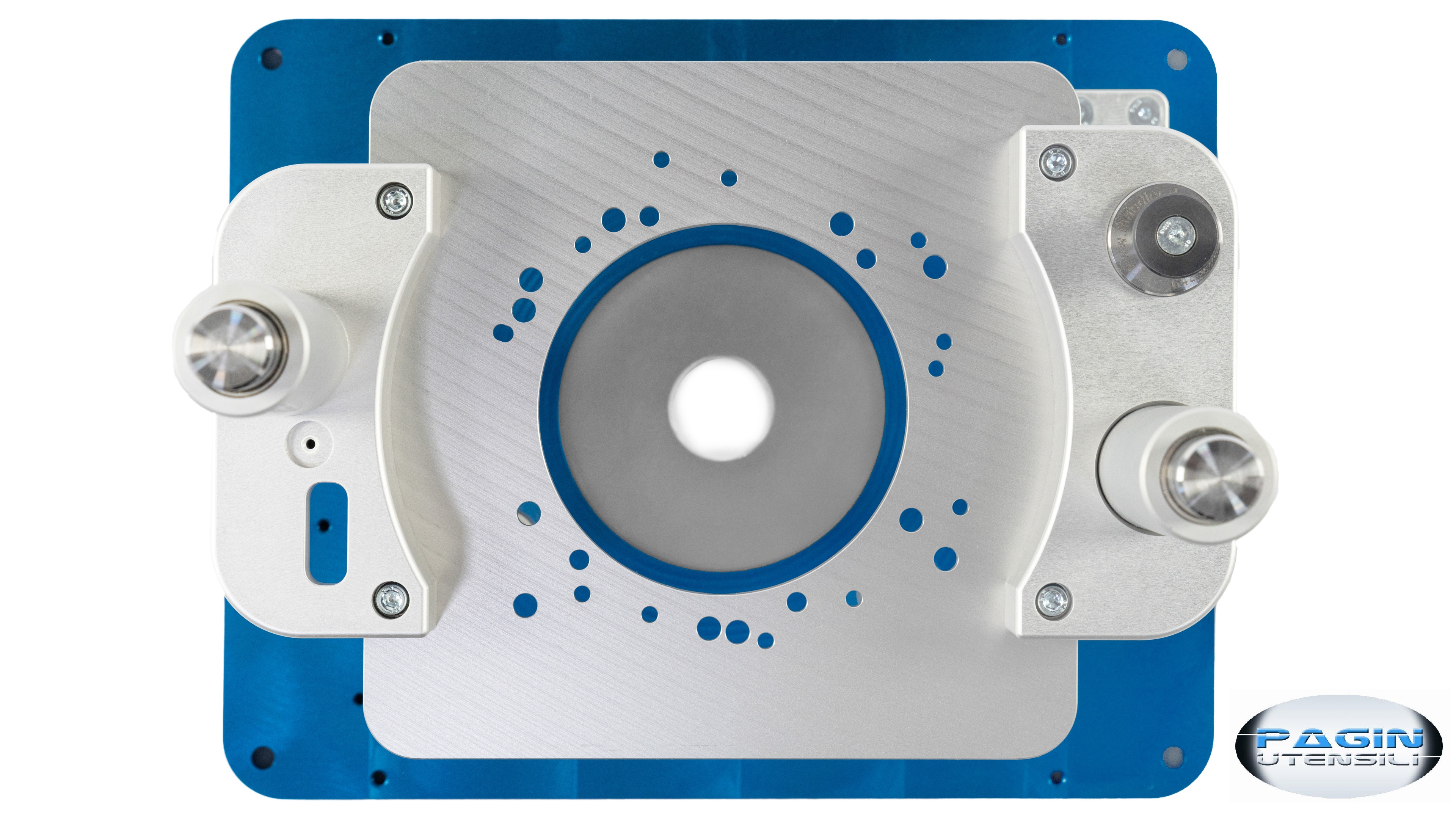

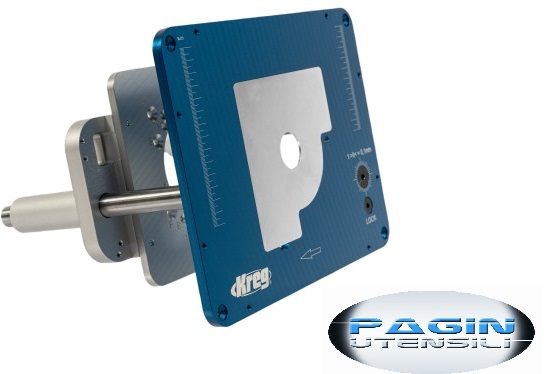

LIFT FOR ROUTER

Features:

•          Quality from Germany: High quality aluminum and steel construction.
•          Fine height adjustment to 1/10 mm: extremely precise adjustable, with exact scale and effective spindle lock, easy to use by means of a hex socket screw.
•          Smooth running spindle columns: allow for precise and stepless height adjustment.
•          Milling without parallel guide: 2 holes for the parallel guide pin allow the milling of, for example, round workpieces without parallel guide.
•          Easy to assemble: The router can be mounted on the RL2.0 using the pre-drilled mounting holes (drilling pattern in the operating instructions).

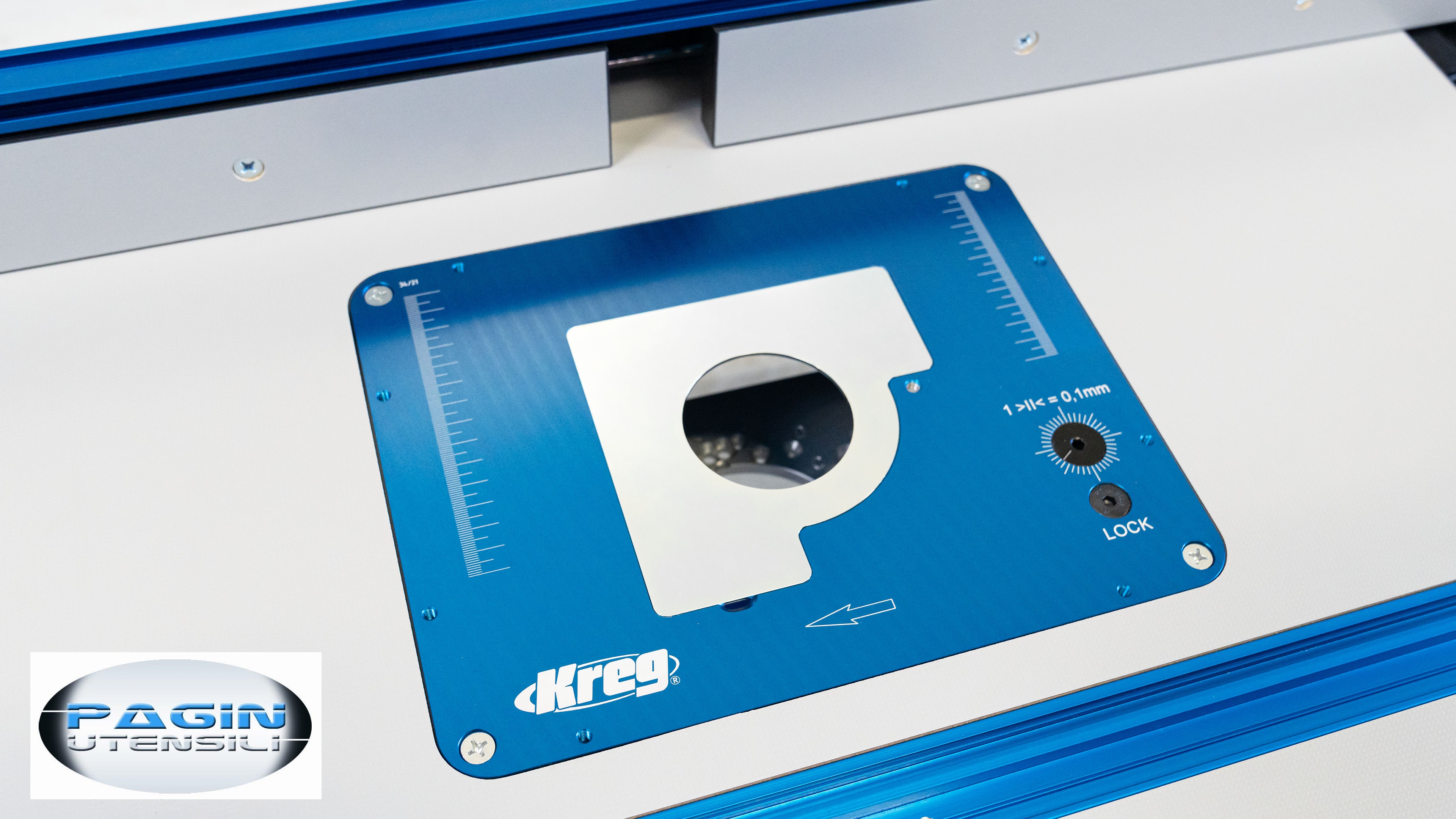

•          Absolutely flat: Easy leveling of the RL2.0 using the leveling screws in the insert plate.
•          Laser scaling: millimeter scale on the surface for exact alignment of the parallel guide.
•          No drilling required: The mounting holes (countersunk) for quick installation of the milling table are already pre-drilled.

Compatible routers:

•          Bosch: POF1200AE, POF1300, POF1400ACE, GOF1250CE / LCE, GMF1600CE, GOF1600CE
•          Casals: CT2200VCE
•          DeWalt: DW615, DW621, DW622, DW624, DW625
•          Elu: MOF96 (E), MOF97 (E), MOF131, MOF177 (E), MOF 177/02 Type 2
•          Festool: OF1400
•          Freud: FT2000 (diabolo), FT2200VCE
•          Mafell: LO 65 CE
•          Makita: RP1110
•          Perls: OF3-808 (RE), OF9 (E)
•          Trends: T5, T10, T11
•          Kreg: K-PRS1045, K-PRS2100
•          Würth: OF1100E

•          Insert plate size: 298 x 235 x 9mm
•          Corner radius insert plate: 19mm or 3/4 "
•          Distance from the top edge of the insert plate to the base plate of the mounted milling machine: 15 mm (loss of milling depth)
•          Height adjustment range / turn: 4mm
•          Milling height (max. Extended): 240 mm
•          Maximum cutter diameter: 86 mm
•          Max. Adjustment range: 105 mm
•          Weight: 4.5 kg
