Joining machine DOMINO DF 500
| Product | Name | Product | Price | Buy | Favorites |
|---|---|---|---|---|---|
 FT-576413 | DF 500 Q-Plus | FT-576413 DF 500 Q-Plus | 1 030,00 € | ||
 FT-576420 | DF 500 Q-Set | FT-576420 DF 500 Q-Set | 1 199,00 € |
Descrizione:

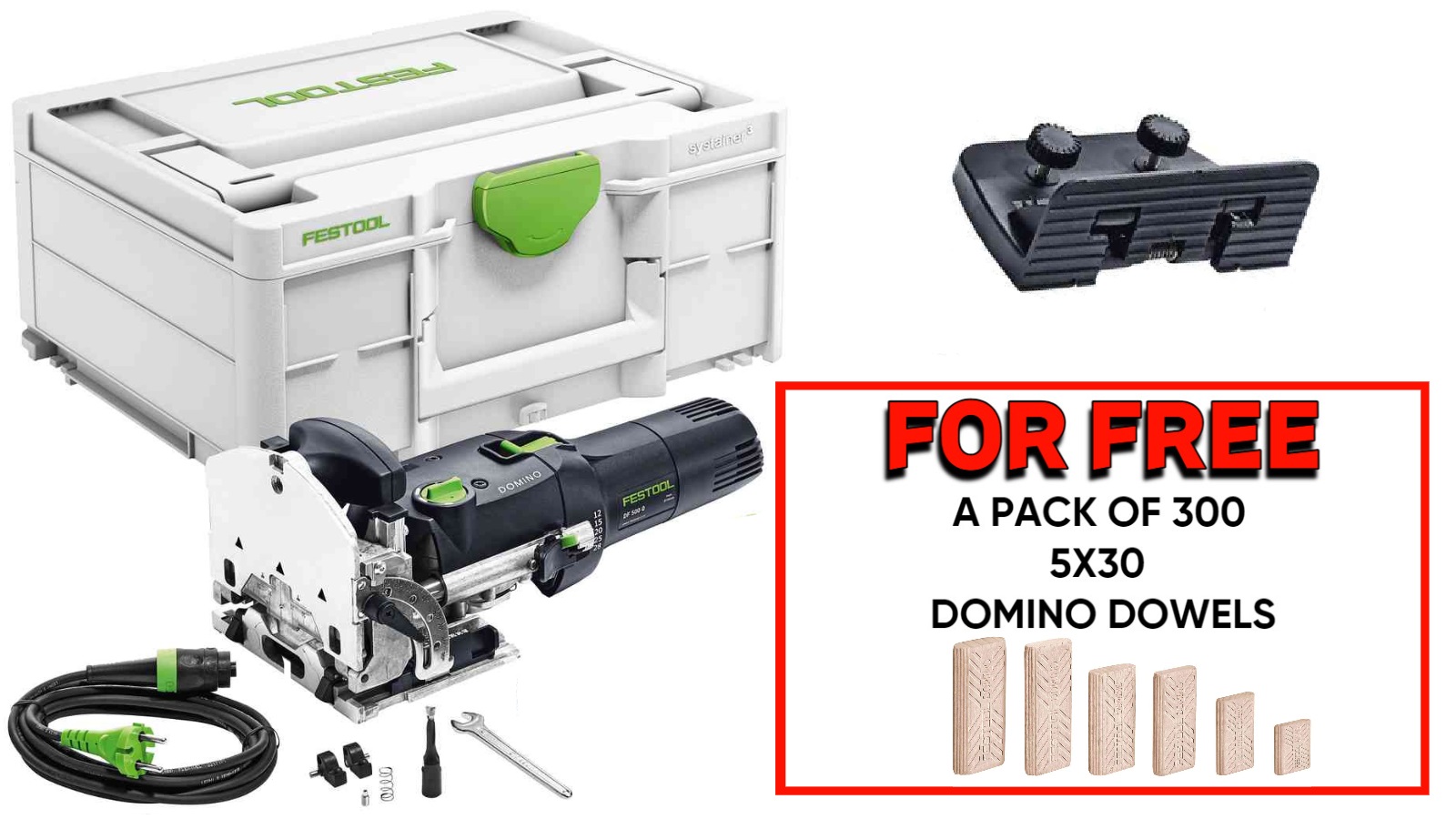

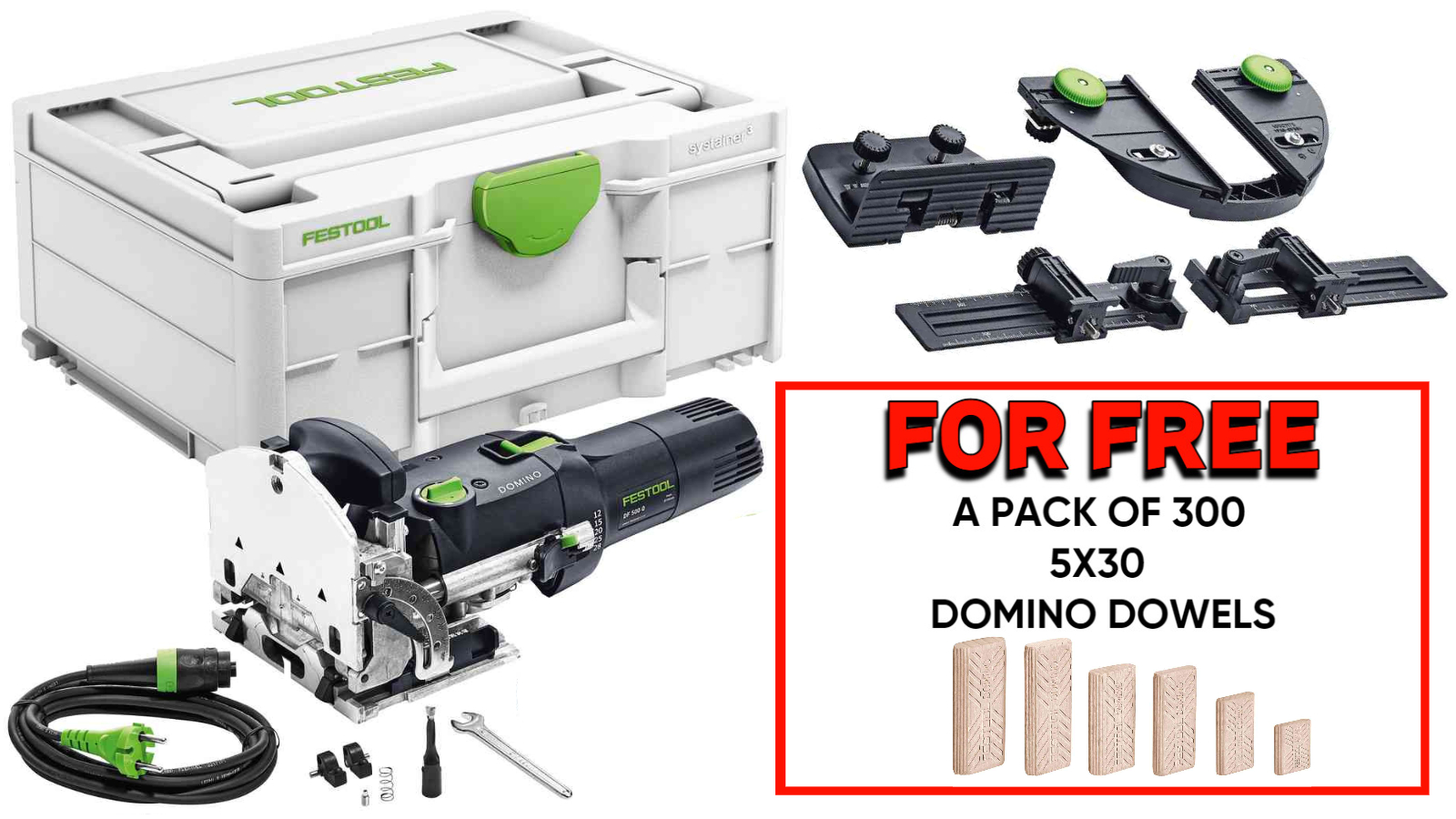

WITH THE PURCHASE OF A DF500
FOR FREE
A PACK OF 300 5X30 DOMINO DOWELS
Usage
Main applications
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints
Technical Data
Technical data
Power consumption
420 W
Idle engine speed
25 500 min⁻¹
Depth stop for routing depth
12, 15, 20, 25, 28 mm
Max. routing depth
28.00 mm
DOMINO slot cutter dia.
4, 5, 6, 8, 10 mm
Routing height adjustment
5 - 30 mm
Mitre routing
0 - 90 °
Dust extraction connection dia.
27 mm
Weight
3.20 kg
Drive type
Mains
Performance features
-
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
-
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
-
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
Noise and vibration values
Routing: Uncertainty (vibration) K
1.50 m/s²
Routing: Uncertainty (noise) K
3.00 dB
Routing: Total vibration average, Ah
3.00 m/s²
Routing: A-weighted sound pressure level, LpA
84.00 dB(A)
Routing: A-weighted sound power level, LWA
95.00 dB(A)
Accessories
 LA-DF 500/700 | 63,72 € | |
 RA DF 500/700 | 53,36 € | |
 ZA-DF 500 | 31,60 € | |
 QA-DF 500/700 | 67,69 € | |
 SORT-SYS 2 TL DOMINO | 102,35 € | |
 BS-KV D15 | 89,44 € | |
 KV D8/50 | 130,12 € | |
 KV-LR32 D8/50 | 103,51 € | |
 MSV D8/25 | 91,88 € | |
 MSV-LR32 D8/25 | 82,78 € | |
 KVB-HW D15 CE | 65,37 € | |
 KV-SYS D8 | 514,82 € | |
 Systainer T-LOC DF SYS 1 TL-DF | 90,59 € | Not Available |
 KV-AK D15 slr/50 | 14,97 € | |
 KV-AK D15 wht/50 | 8,07 € | |
 KV-AK D15 gr/50 | 8,07 € | |
 KV-AK D15 brn/50 | 8,07 € | |
 H05 RN-F-4 | 28,04 € | |
H05 RN-F4/3 | 54,51 € | |
H05 RN-F-5,5 | 30,60 € | |
H05 RN-F-7,5 | 34,17 € | |
H05 RN-F-10 | 44,02 € | |
 D 4-NL 11 HW-DF 500 | 49,27 € | |
 D 5-NL 20 HW-DF 500 | 41,97 € | |
 D 6-NL 28 HW-DF 500 | 42,87 € | |
 D 8-NL 28 HW-DF 500 | 44,67 € | |
 D 10-NL 28 HW-DF 500 | 50,17 € | |
 Frese CMT per Festool® Domino DF500 | 24,78 € | |
 Frese CMT per Festool® Domino DF500 | 21,15 € | |
 Frese CMT per Festool® Domino DF500 | 22,49 € | |
 Frese CMT per Festool® Domino DF500 | 23,00 € | |
 Frese CMT per Festool® Domino DF500 | 25,28 € | |
 Systainer DS4/5/6/8/10 1060 BU per DF 500 | 330,72 € |
*All the prices include 22% Italian VAT
