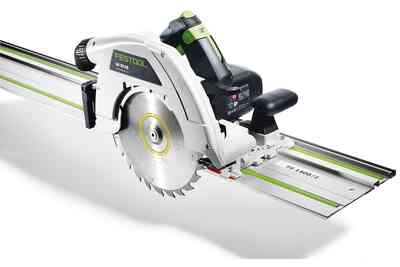

HK 85 portable circular saw
Click to enlarge images
| Product | Name | Product | Price | Buy | Favorites |
|---|---|---|---|---|---|
 FT-767692 | HK 85 EB | FT-767692 HK 85 EB | 752,24 € | Not Available | |
 FT-576147 | HK 85 EB-Plus | FT-576147 HK 85 EB-Plus | 799,57 € | ||
 FT-574665 | HK 85 EB-Plus-FSK 420 | FT-574665 HK 85 EB-Plus-FSK 420 | 988,91 € | Not Available | |
 FT-576138 | HK 85 EB-Plus-FS | FT-576138 HK 85 EB-Plus-FS | 894,24 € |
Descrizione:
Usage
Main applications
- Rip and cross cuts in materials up to 85 mm thick
- Wide application range for mitre cuts up to 60°
- Cutting tenons, square timber and boards
- Cutting panel materials, wood fibre insulating materials and sandwich panels
Technical Data
Technical data
Power consumption
1 900 W
Idle engine speed
3 500 min⁻¹
Saw blade diameter
230.00 mm
Angular range
0 - 60 °
Cutting depth 0°, 90°
0 - 86 mm
Cutting depth at 45°/60°
62/47 mm
Dust extraction connection dia.
27/36 mm
Weight
6.80 kg
Drive type
Mains
Performance features
-
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
-
MMC Multi Material Control electronics
“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
-
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
-
Guide system
Patented guide system for safe guidance of saws and router bits.
-
Cross cutting guide rails
Compound mitre saw system which securely joins machine and cross cutting guide rails together for precisely accurate repeat cuts.
-
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
-
Quick-acting brake
For safe work when planing, sawing and routing.
Noise and vibration values
Sawing wood: Total vibration average, Ah
1.50 m/s²
Sawing wood: A-weighted sound pressure level, LpA
92.00 dB(A)
Sawing wood: Uncertainty (noise) K
3.00 dB
Sawing wood: A-weighted sound power level, LWA
103.00 dB(A)
Sawing wood: Uncertainty (vibration) K
1.50 m/s²
Sawing metal: A-weighted sound pressure level, LpA
92.00 dB(A)
Sawing metal: Total vibration average, Ah
1.70 m/s²
Sawing metal: Uncertainty (vibration) K
1.50 m/s²
Sawing metal: A-weighted sound power level, LWA
103.00 dB(A)
Sawing metal: Uncertainty (noise) K
3.00 dB
Accessories
 FSK 250 | 121,77 € | |
 FSK 420 | 140,43 € | |
 FSK 670 | 159,19 € | |
 PA-HK 85 | 68,58 € | |
 Dispositivo di fresatura VN-HK85 130x16-25 | 439,80 € | |
 Battuta parallela PA-A-HK 85 | 58,00 € | |
 Battuta parallela PA-HK 85 | 35,65 € | |
 Tasca FSK420-BAG | 36,47 € | |
 FSK670-BAG | 84,33 € | |
 FS 3000/2 | 367,03 € | |
 FS 2700/2 | 342,22 € | |
FS 5000/2 | 605,24 € | |
FS 1900/2 | 204,84 € | |
FS 1400/2 | 119,38 € | |
FS 2400/2 | 294,13 € | |
 230x2,5x30 PW18 | 98,51 € | |
 230x2,5x30 W24 | 101,33 € | |
 230x2,5x30 W48 | 138,71 € | |
 230x2,5x30 TF76 | 221,97 € | |
 230x2,5x30 F48 | 155,44 € | |
 HW-WP 14x14x2/12 | 83,05 € |
*All the prices include 22% Italian VAT
