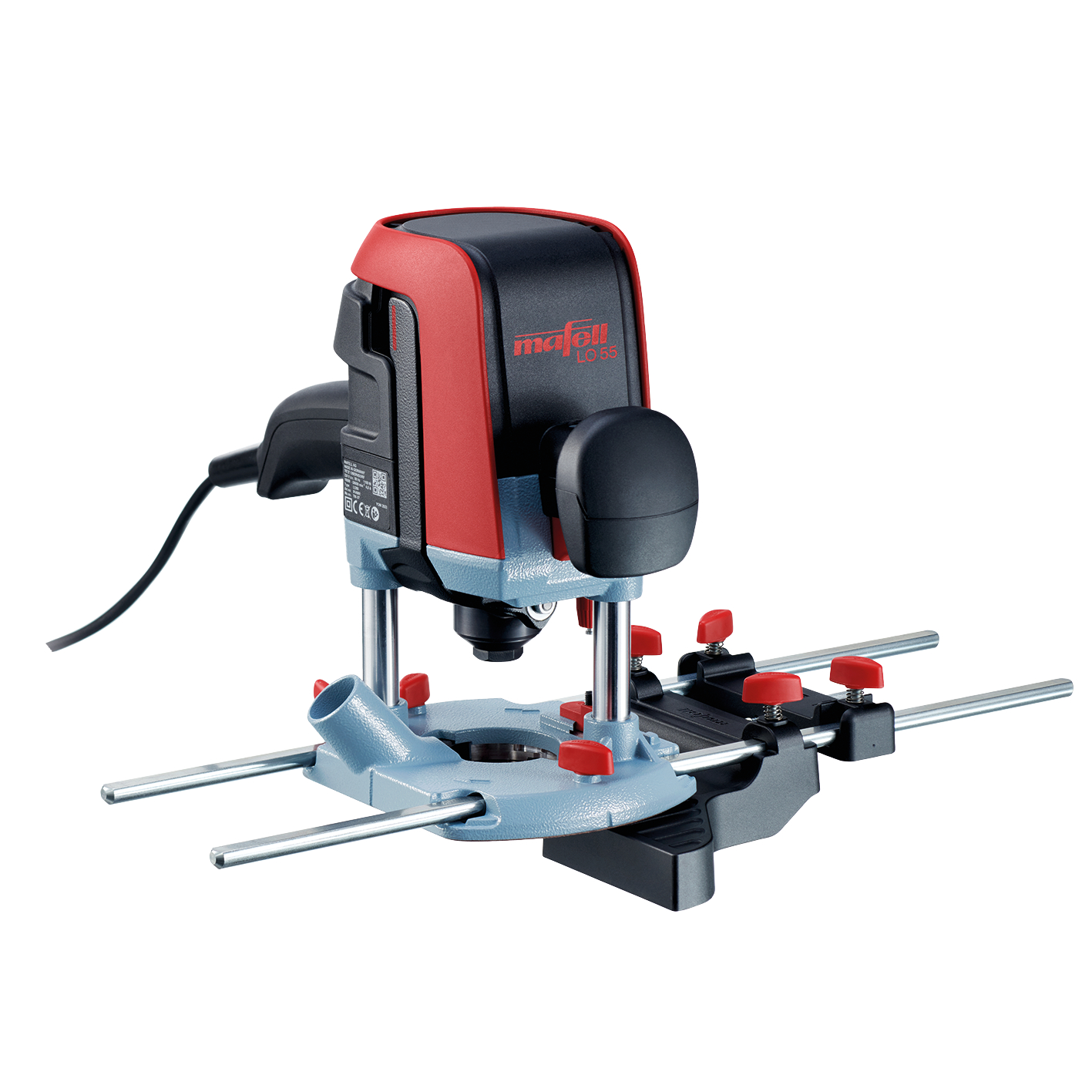

Fresatrice verticale LO 55
Descrizione:
Description:
- Want to know what a whole new world of versatility looks like? Then cast a glance at the LO 55. In view of its exemplary operation, it’s the ideal partner for every task both in the workshop and on site. Discover the broad application scope for yourself and unleash your creativity.
- Our Ergo-Balance principle focuses on you, the user. As a machine, the LO 55 is perfectly balanced; vibrations and their transmission are simply avoided.
- Graduated turrets with height fixing for recurring machining depths. For dovetail joints, the cutting depth can be additionally fixed.

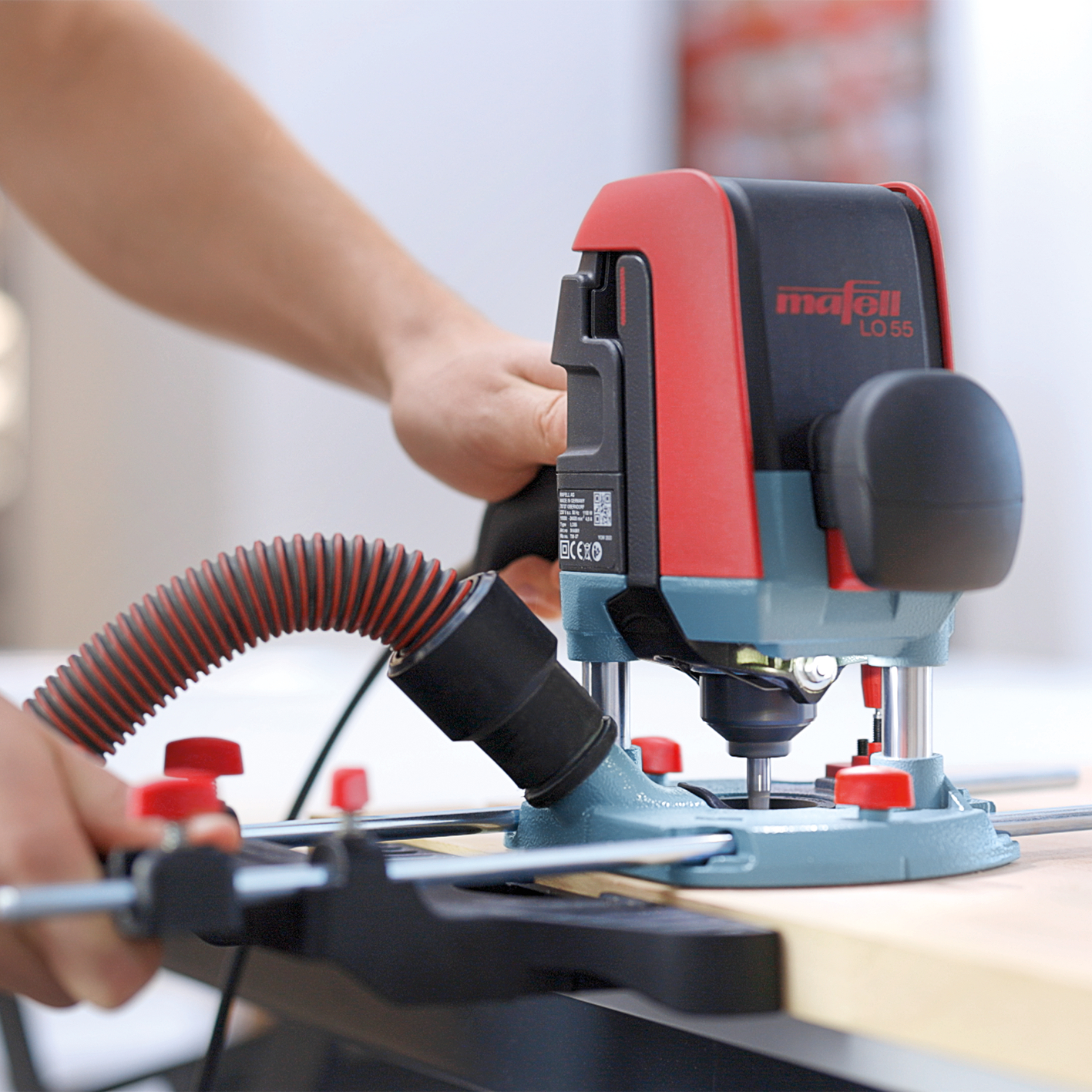

- Use of the router adapter LO-FA and guide rail F-LR allows you to drill rows of holes with reliability and precision. For rapid progress, simply deactivate the Permafix lock.
Delivery specification:
- 1 Parallel guide fence with fine adjustment
- 1 chip deflector
- 1 Template guide 20 mm (13/16 in.)
- 1 Template guide 30 mm (1 3/16 in.)
- 1 Template guide 40 mm (1 37/64 in.)
- 1 Template guide adapter
- 1 Extraction hose adapter
- 1 Extraction hose adapter for rail F
- 1 Adapter sleeve (ground) 1/4” (1/4 inch)
- 1 Mains cable 4 m - GB 230 V
- Transport and storage box MAX3
- MA-DEAL82: 1 Set of cutters LO-FS8 6T; Ref. No.MA-090283
Technical Data:
| Cutting depth | 0 - 2 3/16 Inch |
| Chuck Ø | 5/16 Inch |
| Nominal No. of strokes – no load | 10000 - 24000 1/min |
| Nominal power input | 1.5 hp |
| Extraction connection diameter | 1 1/8 Inch |
| Weight | 6.8 lbs |
| Universal motor | 230 V / 50 Hz |
| Product | Product | Price | Buy | Description | Favorites |
|---|---|---|---|---|---|
| MA-91A901 | MA-91A901 | 791,78 € | Fresatrice verticale LO 55 in MAX3 | ||

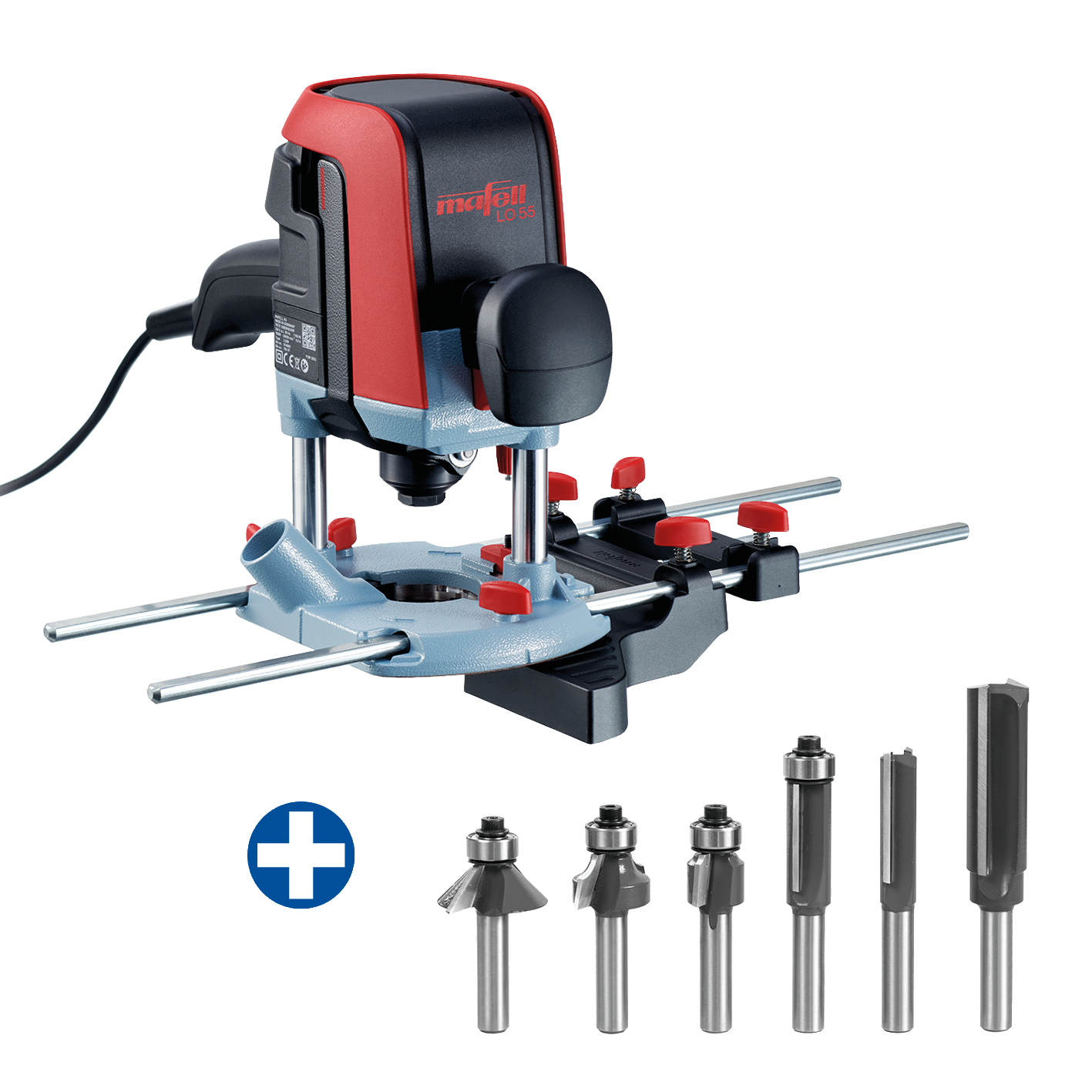

| MA-DEAL82 | MA-DEAL82 | 961,36 € | LO 55 + Set di frese LO-FS8 6T |
