Dispositivo per fresate a catena SG 230
Click to enlarge images
Descrizione:
Description:

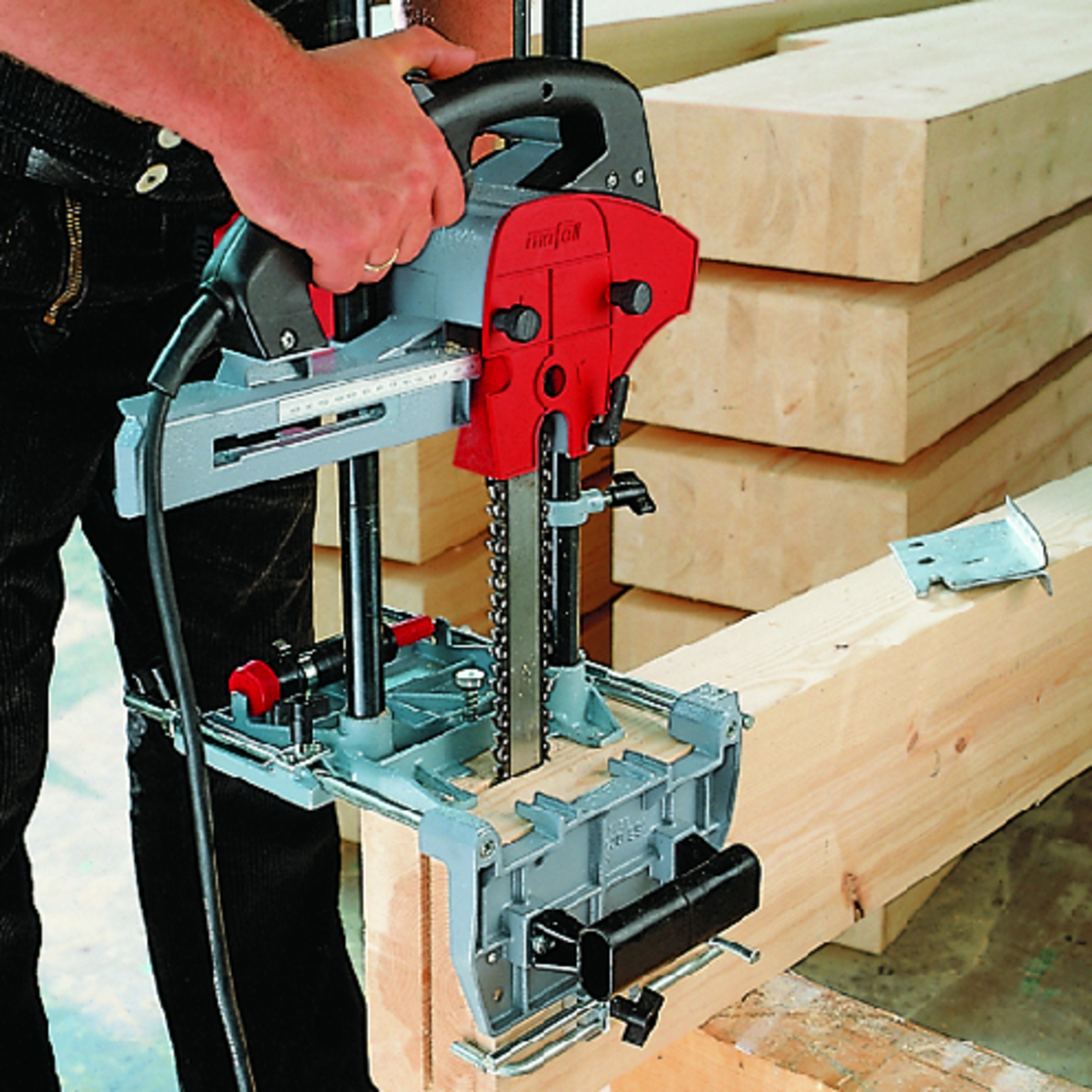

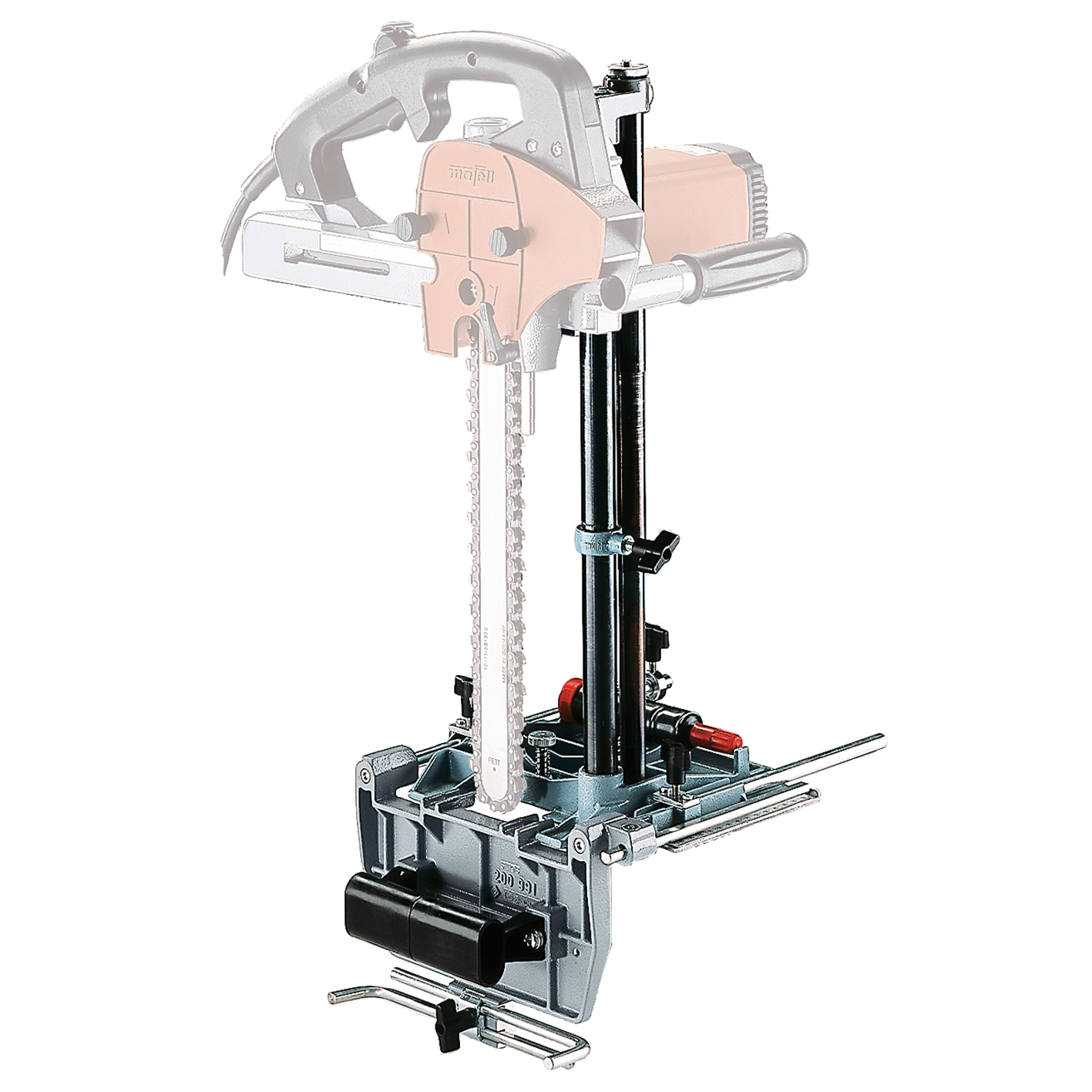

- The SG 230 is one of three options for the Chain Mortiser LS 103 Ec for cutting slots in beams and glulam.
- Channels for supply lines, slots in posts or for concealed beam joints: with the SG 230 you can cut slots in any timber up to a depth of 285 mm (11 1/4 in.). With working depths up to 230 mm, a spring-loaded mechanism assists the return to the starting position.
- With a weight of just 16.7 kg (36.8 lbs), you can even cut slots in fitted beams.
- With this combination, the coordination of slot mortising attachment and chain mortiser enables you to make 100 % perfect size slots from beginning to end.
Delivery specification:
- 1 Grease gun; Ref. No.MA-076158
- boxed
Technical Data:
| Mortising depth vertical / horizontal | 9 1/16 / 11 1/4 Inch |
| Mortising width in one cut | 1/4 - 13/16 Inch |
| Mortising length in one cut | 1 15/16 Inch |
| Weight | 17.0 lbs |
| Product | Product | Price | Buy | Description | Favorites |
|---|---|---|---|---|---|
| MA-200990 | MA-200990 | 1 766,56 € | Dispositivo per fresate a catena SG 230 |
