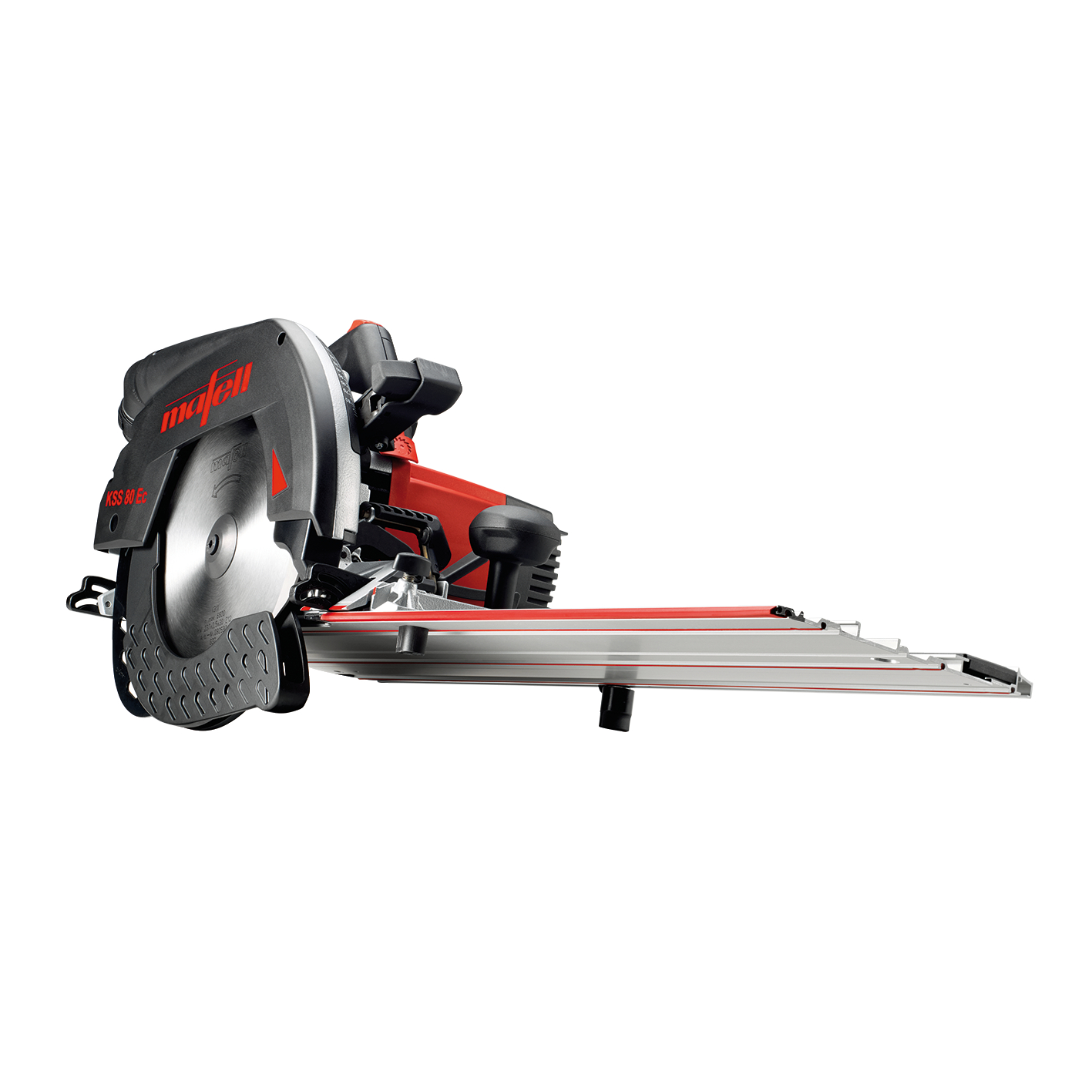

Cross-Cutting System KSS 80 Ec / 370
Click to enlarge images
Descrizione:
Description:

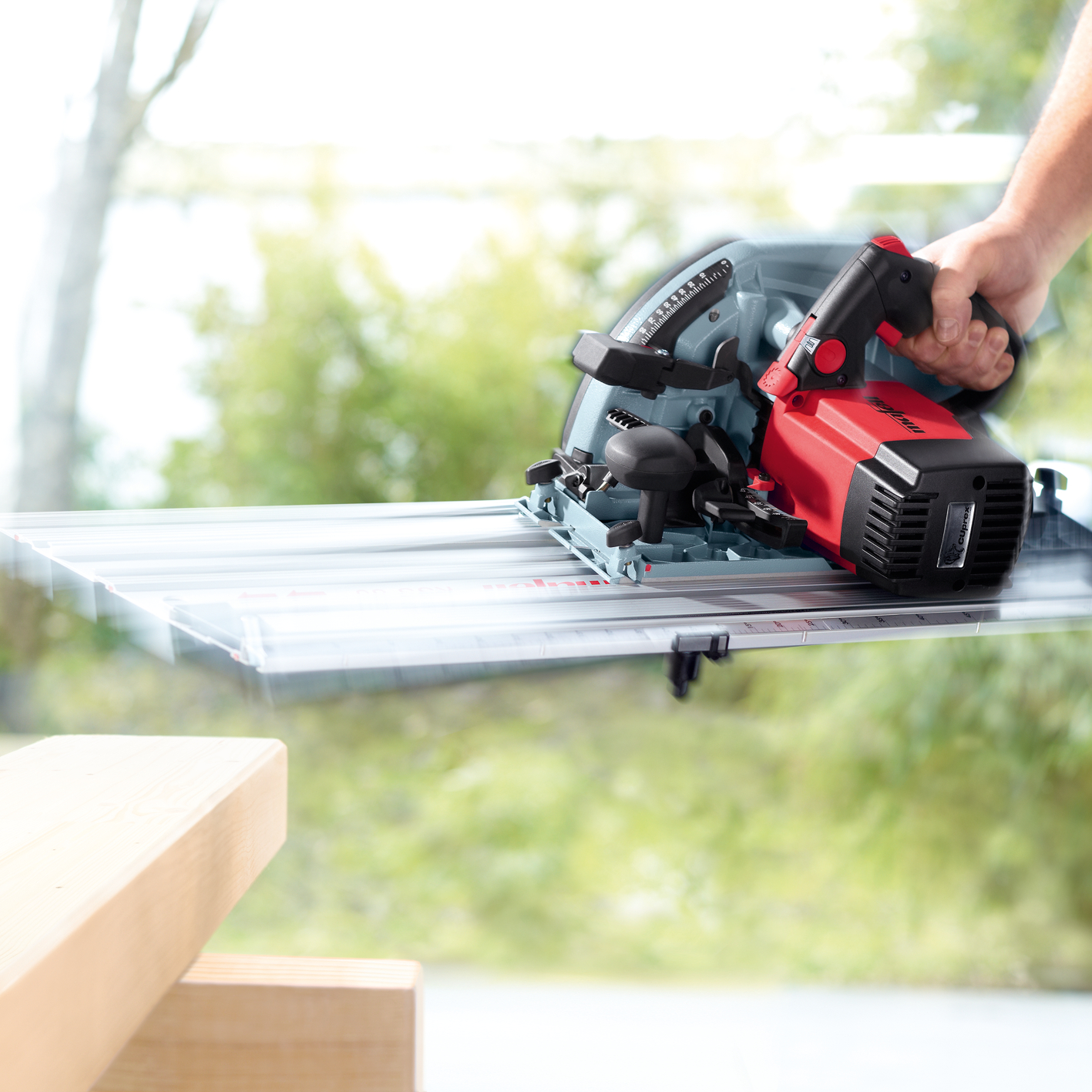

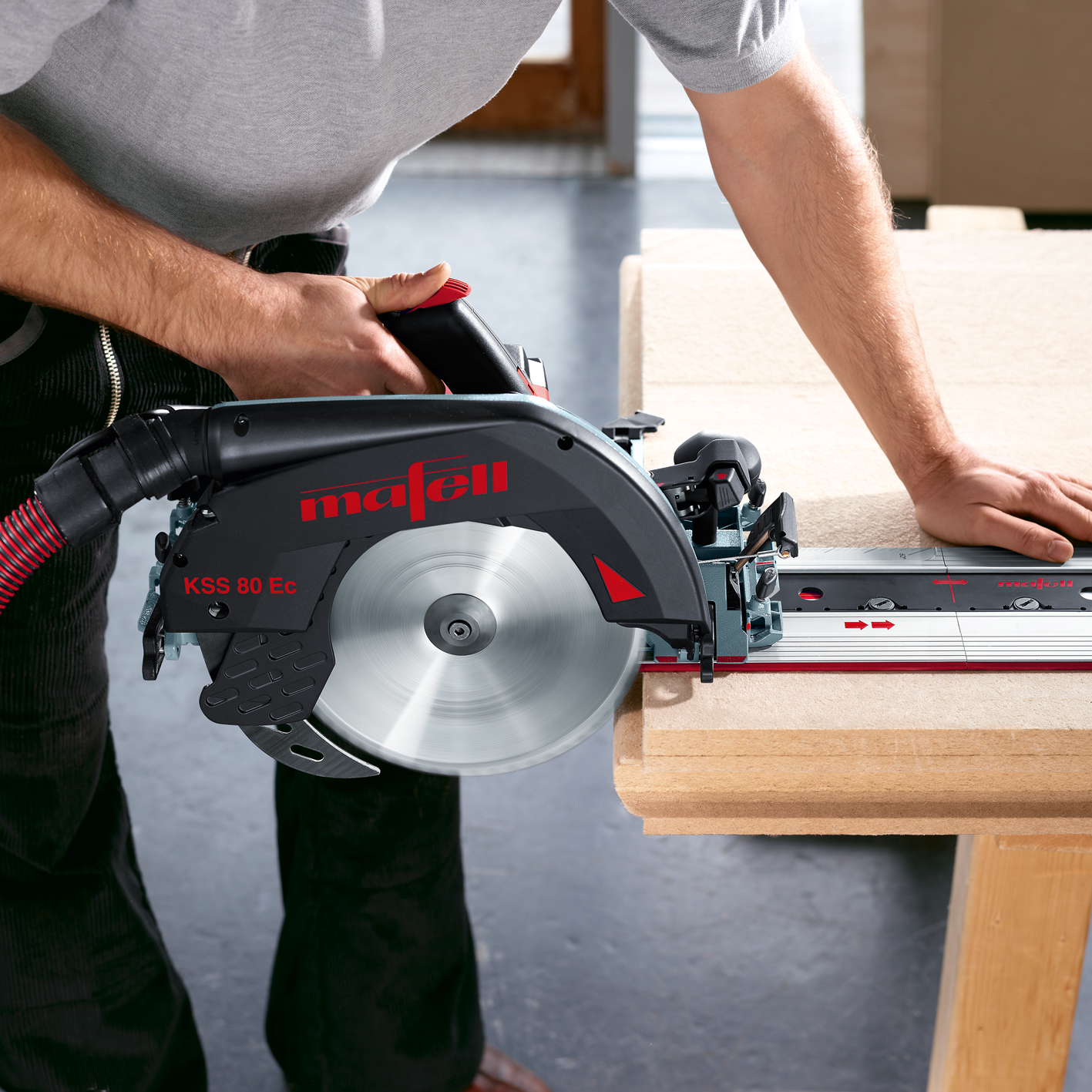

- The MAFELL KSS 80 Ec / 370 cross-cutting system combines power and precision with ease of use and ergonomic design. These properties transform the machine into an unique carpentry system.
- Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 370 mm (14 9/16 in.).
- Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
- It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.
Delivery specification:
- 1 TCT saw blade 237 x 1.8/2.5 x 30 mm (9 5 /16 in.), AT, 12 teeth, for rip cuts in wood; Ref. No. MA-092590
- 1 Parallel guide fence; Ref. MA-205323
- 1 Hose connector for chip extraction; Ref. No. MA-205290
- 1 Allen key 5 mm; Ref. No. MA-093034

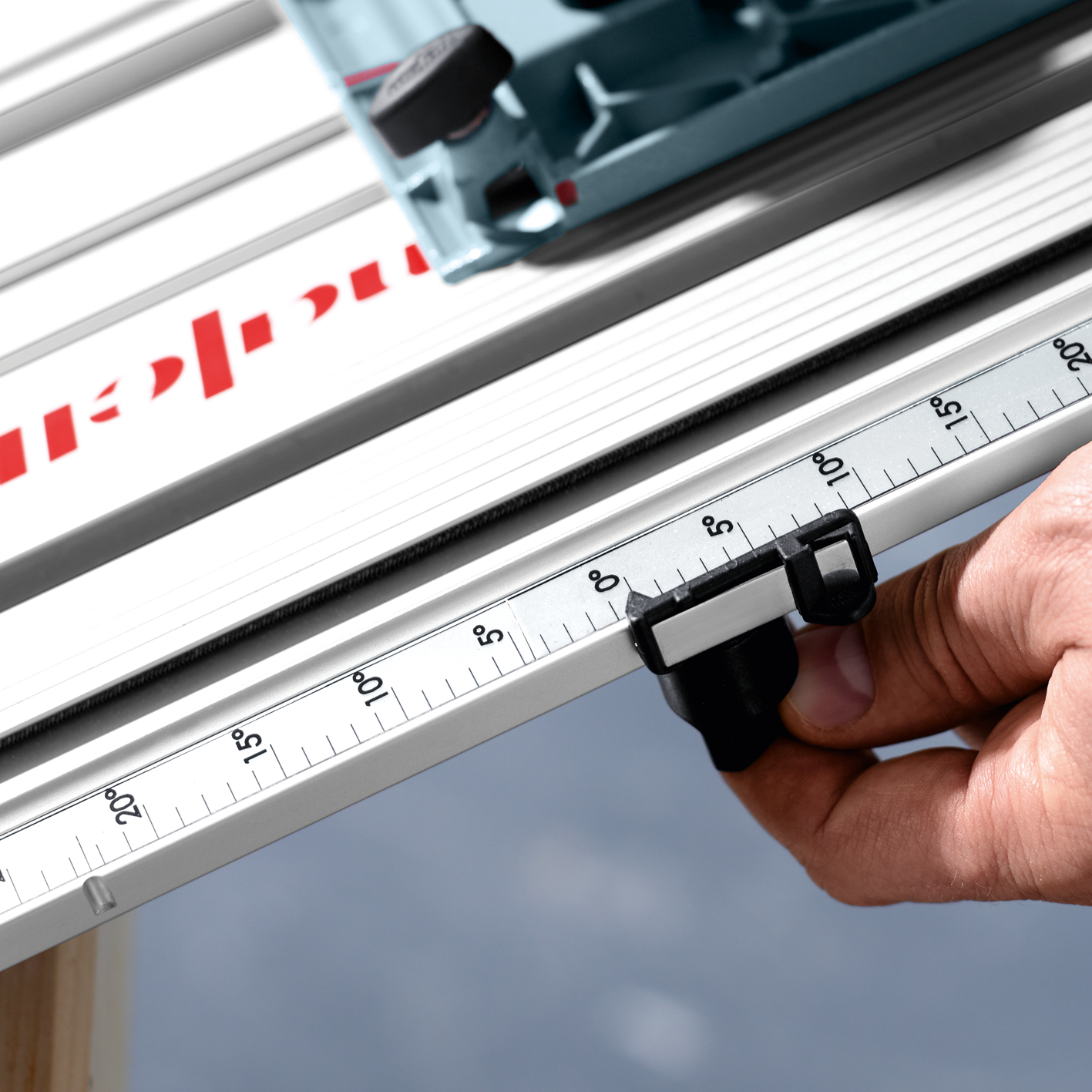

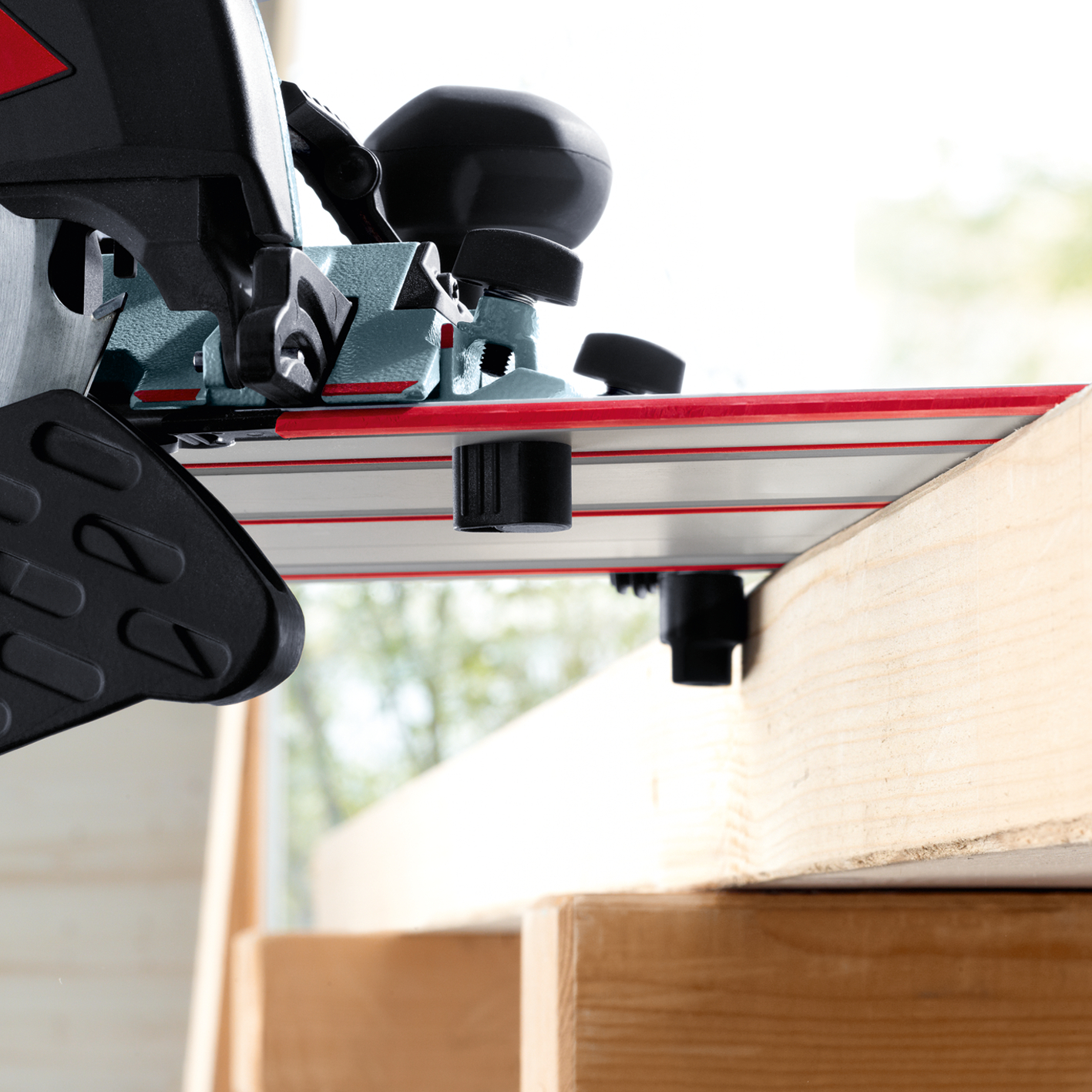

- 1 Guide track L, max. cutting length 370 mm (14 9/16 in.); Ref. No. MA-208171
- 1 Mains cable 4 m (13.1 ft); Ref. No. MA-087888
- boxed
Technical Data:
| Cutting depth at 0° with guide track | 0 - 3 1/4 Inch |
| Cutting depth 45° with track | 0 - 2 3/16 Inch |
| Cutting depth at 0 ° without guide track | 0 - 3 7/16 Inch |
| Cutting depth at 60° | 0 - 1 1/2 Inch |
| Angle cuts | -60 - +50 ° |
| Tilt range | 0 - 60 ° |
| Nominal No. of strokes – no load | 2250-4400 1/min |
| Nominal power input | 3.1 hp |
| Weight with guide rail | 18.3 lbs |
| Universal motor | 230 V / 50 Hz |
| Product | Product | Price | Buy | Description | Favorites |
|---|---|---|---|---|---|
| MA-918501 | MA-918501 | 1 535,98 € | Sistema sega troncatrice KSS 80 Ec / 370 |
