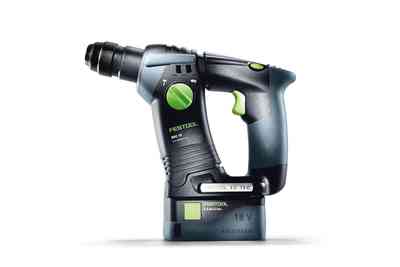

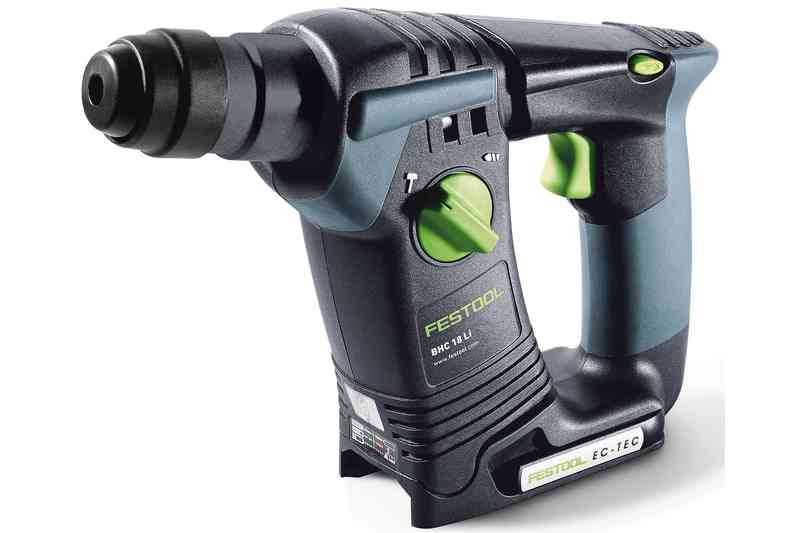

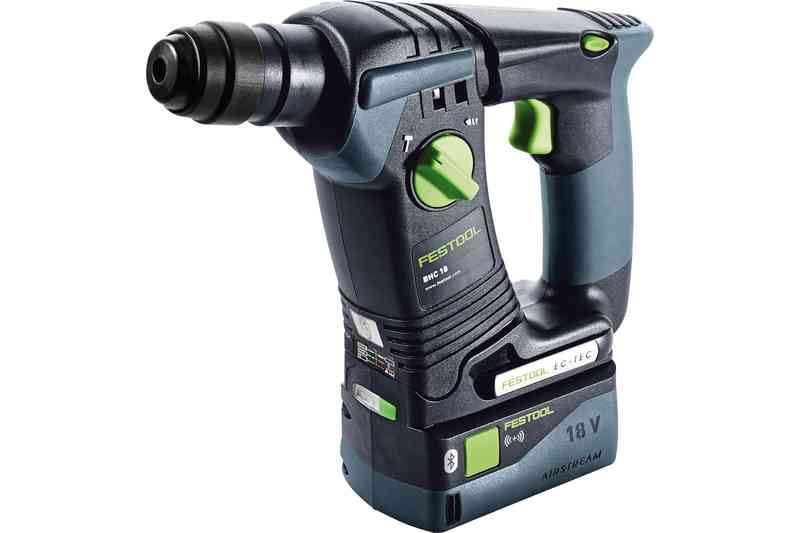

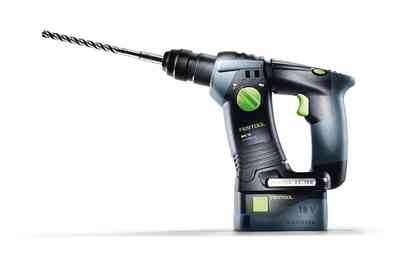

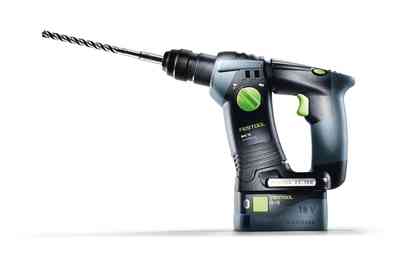

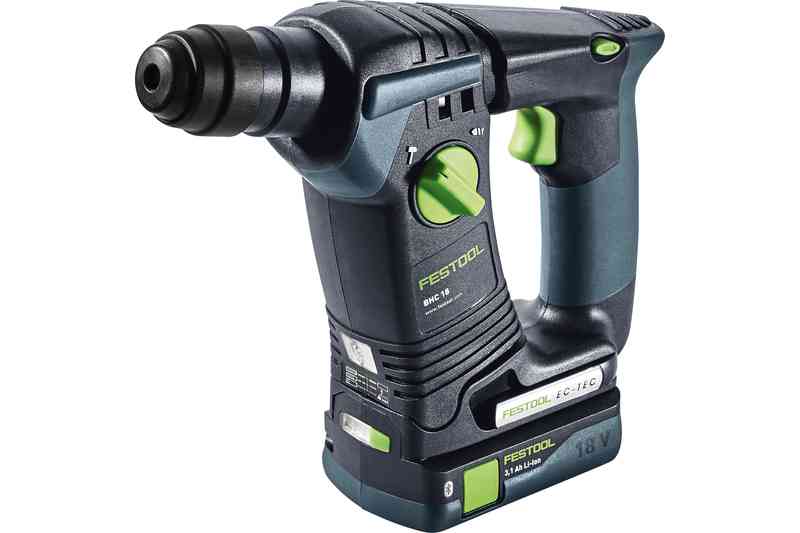

Cordless hammer drill BHC 18

Click to enlarge images

Product	Name	Product	Price	Buy

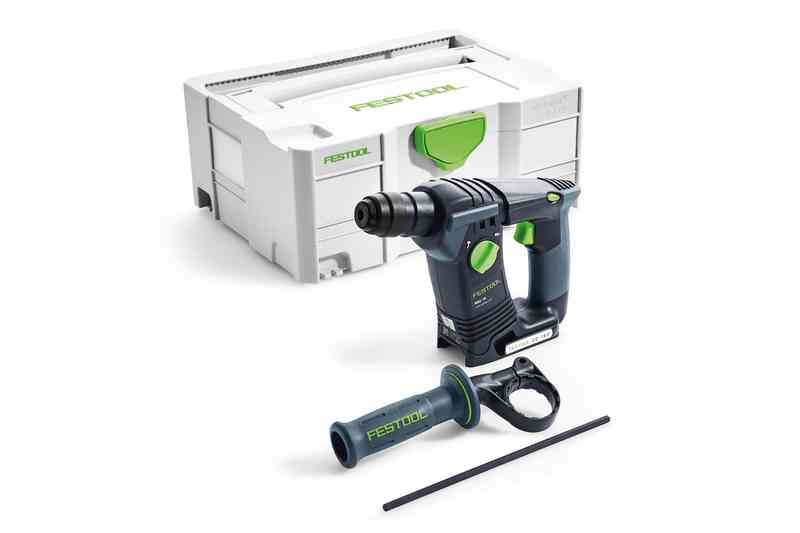

FT-577600	BHC 18 Li-Basic	FT-577600 BHC 18 Li-Basic	384,21 €
FT-575700	BHC 18 Li 3,1 I-Compact	FT-575700 BHC 18 Li 3,1 I-Compact	671,63 €	Not Available

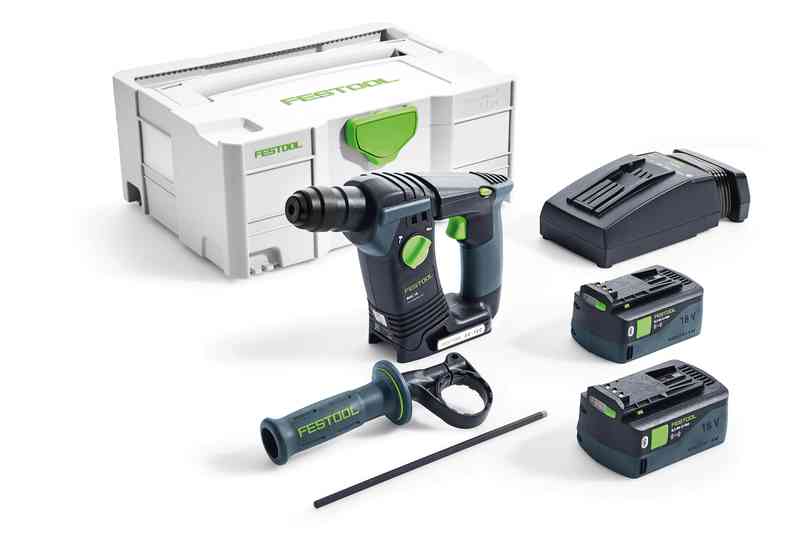

FT-577602	BHC 18 Li 4.0 I-Plus	FT-577602 BHC 18 Li 4.0 I-Plus	788,00 €

Descrizione:

Usage

Drilling holes with pneumatic stop for dowels up to 18 mm in concrete, stone and masonry
Weighing only 2.6 kg and with excellent balance, it is ideally suited for continuous use for interior fittings, assembly and for securing thermal insulation composite systems
Drilling and fastening without hammer impact, such as spot drilling tiles
Electrical socket cutting up to Ø 68 mm in lime sand brick and masonry

Technical data

Battery voltage

18 V

Gears

Idle engine speed

0 - 1 100 min⁻¹

Max. number of strokes

4895.00 min⁻¹

Drilling dia. (concrete)

18.00 mm

Max. crown borer hole diameter

68.00 mm

Max. torque, wood/steel

10/25 Nm

Tool holder

SDS-Plus

Single impact energy

1.80 J

Li-Ion battery capacity

3,1/5,2 Ah

Weight with Li-Ion battery

2,3/2,6 kg

Dimensions (L x W x H)

280 x 88 x 237 mm

Drive type

Battery

Performance features

Electronic

Speed control for adjusting to all types of materials.
EC-TEC motor

The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.
SDS-plus holder

Tool holder for quick tool changes.
Safety coupling

Mechanical sliding clutch provides protection if the tool suddenly seizes or tilts.
Impact stop

Allows manual deactivation of the impact function when drilling into wood or brittle materials.

Noise and vibration values

Hammer drilling in concrete: Uncertainty (noise) K

3.00 dB

Hammer drilling in concrete: Total vibration average, Ah

14.00 m/s²

Hammer drilling in concrete: Uncertainty (vibration) K

3.00 m/s²

Hammer drilling in concrete: A-weighted sound power level, LWA

99.00 dB(A)

Hammer drilling in concrete: A-weighted sound pressure level, LpA

88.00 dB(A)
