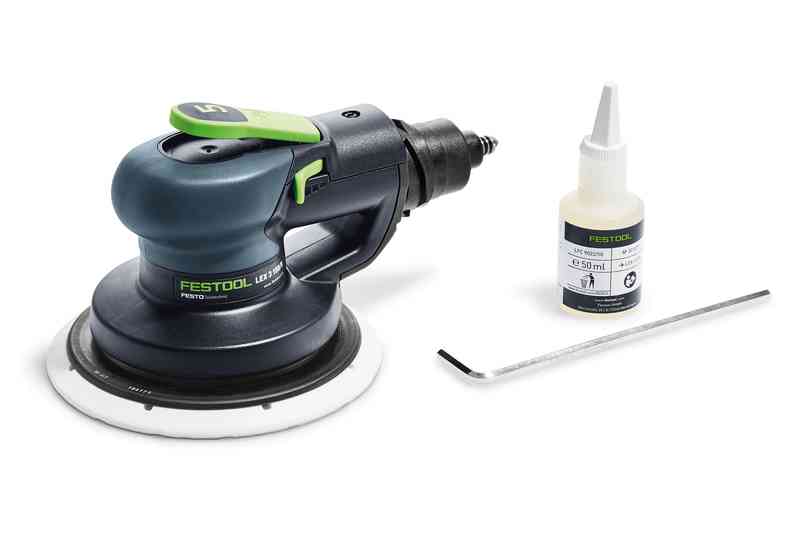

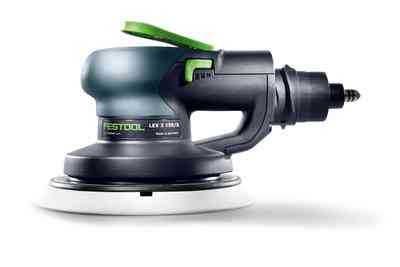

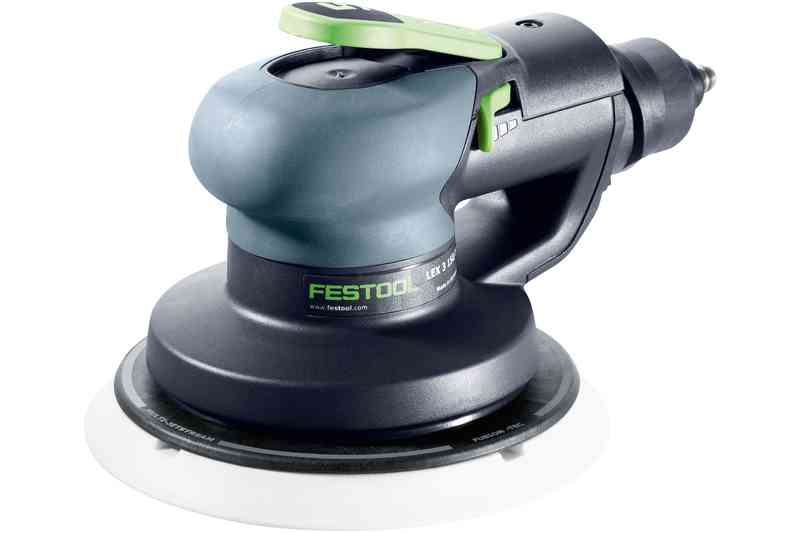

Compressed air eccentric sander LEX 3 150/5

ProductNameProductPriceBuyFavorites
FT-575081
LEX 3 150/5
FT-575081
LEX 3 150/5
739,45 €
Descrizione:

Usage

Main applications

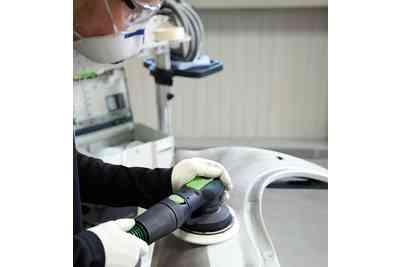

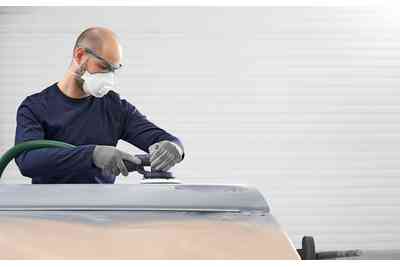

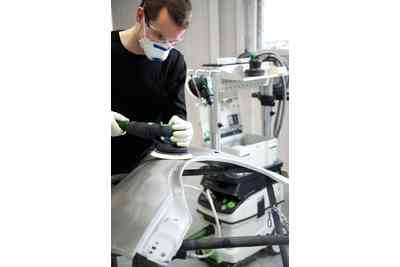

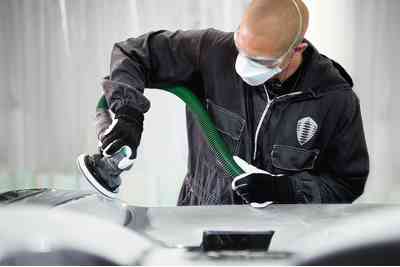

  • Coarse and intermediate sanding of flat surfaces or curves
  • Coarse and intermediate sanding of filler, e.g. in 4-step sanding system

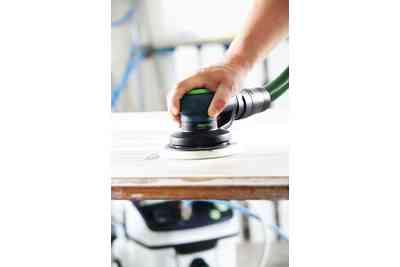

  • Intermediate sanding of wood, paint and clear coats
  • Preliminary sanding of mineral materials

Technical Data



Technical data
Operating pressure (flow pressure)
6.00 bar
No. of strokes
20 000 min⁻¹
Eccentric motion speed
10 000 min⁻¹
Sanding stroke
5.00 mm
Vibration emission value Ah (single-axle)
2.70 m/s²
Vibration emissions value Ah (three-axle)
3.90 m/s²
Air consumption at rated load
290.00 l/min
Sound pressure level
72.00 dB(A)
Sanding pad dia.
150.00 mm
Weight
1.00 kg
Drive type
Mains
Performance features
  • Antistatic function

    Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

  • MULTI-JETSTREAM 2

    Sanding with integrated dust conveying system. With the patented MULTI-JETSTREAM 2 principle.

  • Vibration stop

    Patented VS balancing so that tools run smoothly during sanding, which makes working less hazardous.

  • StickFix STF

    Quick, economical fastening system for abrasives – no adhesives, no clamping.

  • Quick-acting brake

    For safe work when planing, sawing and routing.

  • IAS 3

    Hose system incorporates compressed air, dust extraction and exhaust air.

  • IAS 3 light

    Dust extraction, compressed air with external exhaust air dissipation.

Noise and vibration values
Sanding: Uncertainty (noise) K
3.00 dB
Sanding: Total vibration average, Ah
3.90 m/s²
Sanding: Uncertainty (vibration) K
2.00 m/s²
Sanding: A-weighted sound pressure level, LpA
72.00 dB(A)
Sanding: A-weighted sound power level, LWA
83.00 dB(A)

Accessories
FT-202458
ST-STF D150/MJ2-M8-W-HT
68,58 €
FT-202459
ST-STF D150/MJ2-M8-SW
68,58 €
FT-202460
ST-STF D150/MJ2-M8-H-HT
68,58 €
FT-497209
IAS 3-5000 AS
396,22 €
FT-497208
IAS 3-3500 AS
334,94 €
FT-497478
IAS 3 light 3500 AS
293,23 €
FT-497210
IAS 3-7000 AS
511,21 €
FT-499025
FT-499025
IAS 3-FA
38,64 €
Not Available
FT-497211
IAS 3-10000 AS
789,09 €
FT-497479
IAS 3 light 7000 AS
420,64 €
FT-489222
IAS-ZA
79,72 €
FT-497284
IAS 3-DA-CT
107,86 €
FT-497213
IAS 3 light 5000 AS
345,55 €
FT-488418
AD-IAS/D 36
68,06 €
FT-497215
D 12,4 x 5 m
81,75 €
FT-497214
IAS 3-SD
95,44 €
FT-497480
IAS 3 light 10000 AS
650,91 €
FT-201076
LFC 9022/1000
47,20 €
FT-201077
LFC 9022/50
6,66 €

*All the prices include 22% Italian VAT
