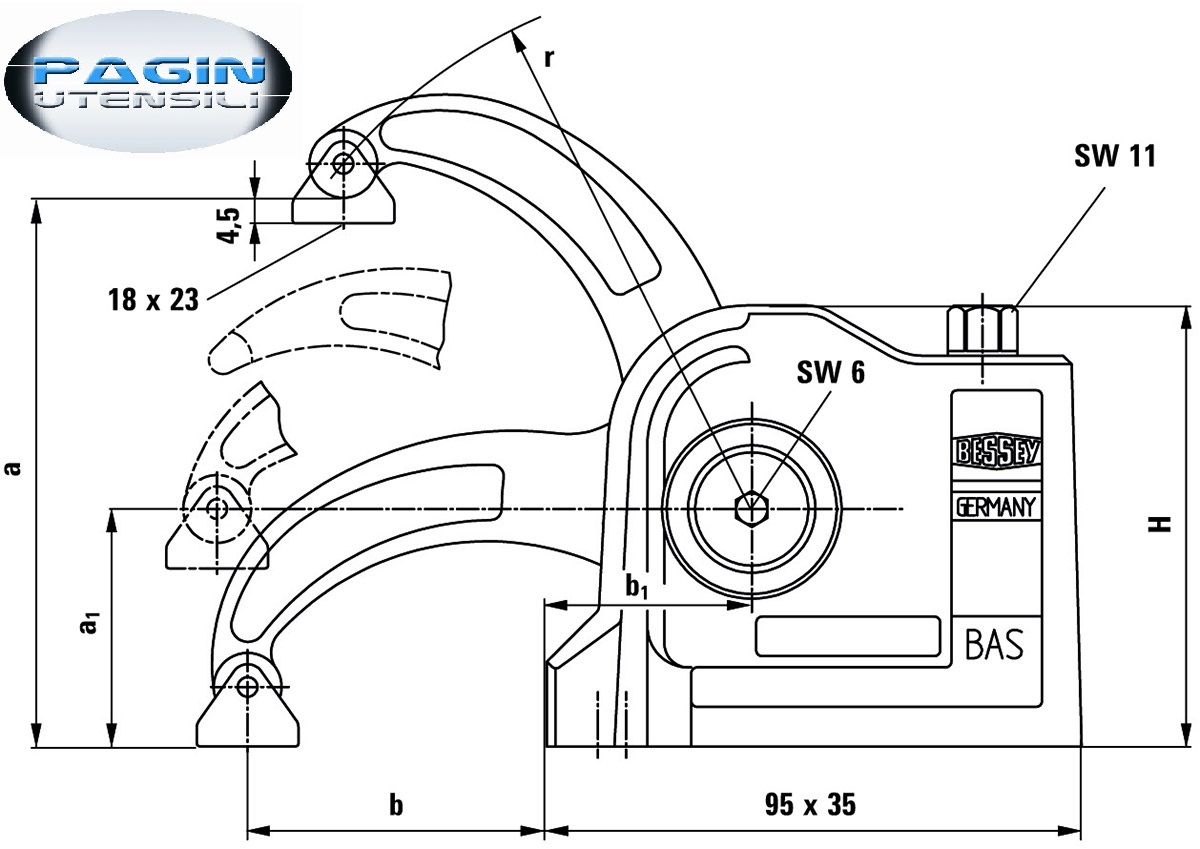

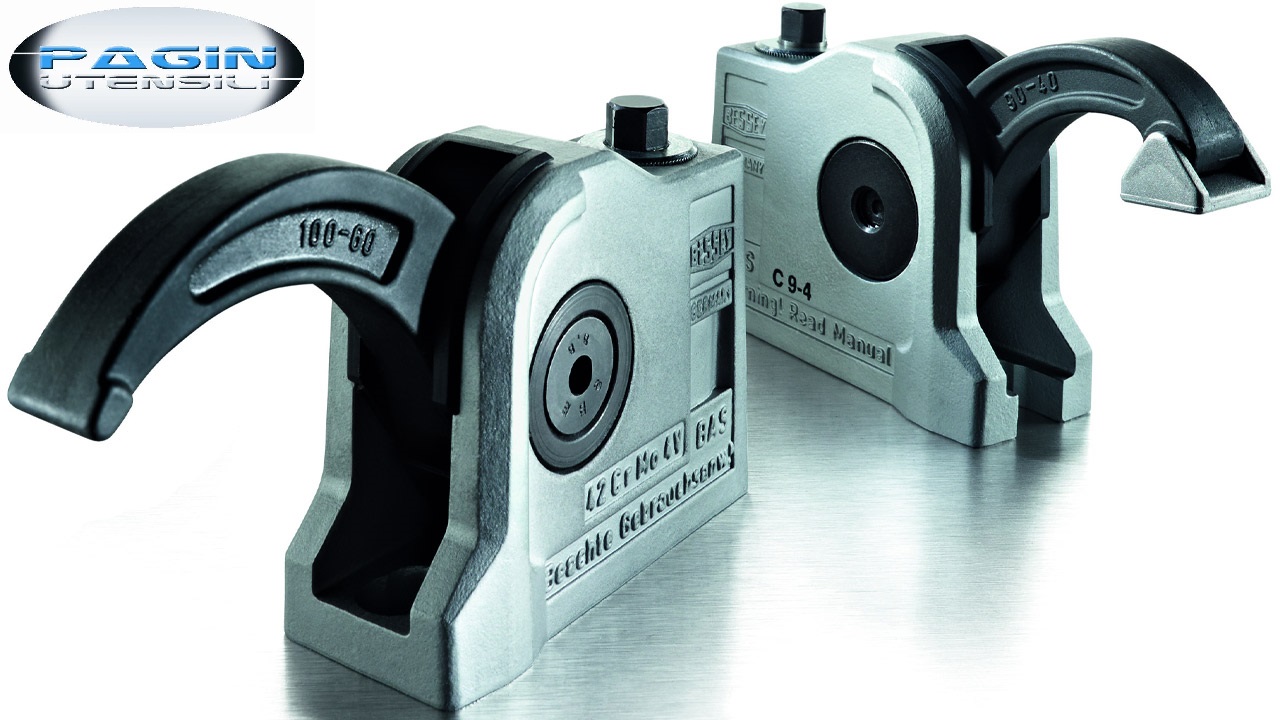

Compact clamps BAS-C and BAS-CB, open and closed fixing hole
Descrizione:
- Clamping force up to 16,000 N
- Space-saving design and therefore up to 30% smaller than comparable competitive models
- Housing and pressure arm made of hardened stainless steel, therefore extremely robust and long-lasting

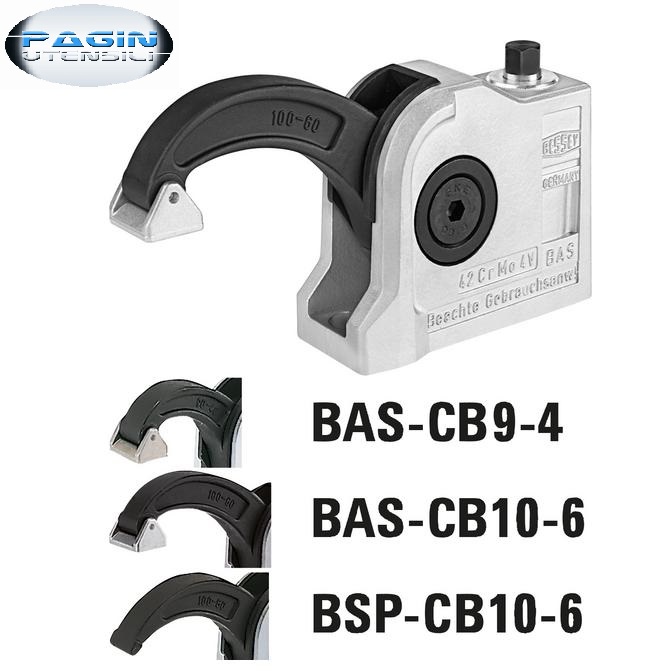

- Available in three press arm variants: with short and long press arm and swiveling aluminum punch or with a pointed press arm for clamping thin bevels or for limited space conditions
- BAS-C with open fixing hole and BAS-CB with closed fixing hole for M10 / M12
| Product | Product | Price | Buy | DIM | Favorites |
|---|---|---|---|---|---|
| BY-BAS-C9-4 | BY-BAS-C9-4 | 280,49 € | 88mm x 40mm | ||
| BY-BAS-C10-6 | BY-BAS-C10-6 | 290,52 € | 97mm x 60mm | ||
| BY-BSP-C10-6 | BY-BSP-C10-6 | 289,67 € | 97mm x 60mm | ||
| BY-BAS-CB9-4 | BY-BAS-CB9-4 | 280,49 € | 88mm x 40mm | ||
| BY-BAS-CB10-6 | BY-BAS-CB10-6 | 290,52 € | 97mm x 60mm | ||
| BY-BSP-CB10-6 | BY-BSP-CB10-6 | 289,67 € | 97mm x 60mm |
*All the prices include 22% Italian VAT
