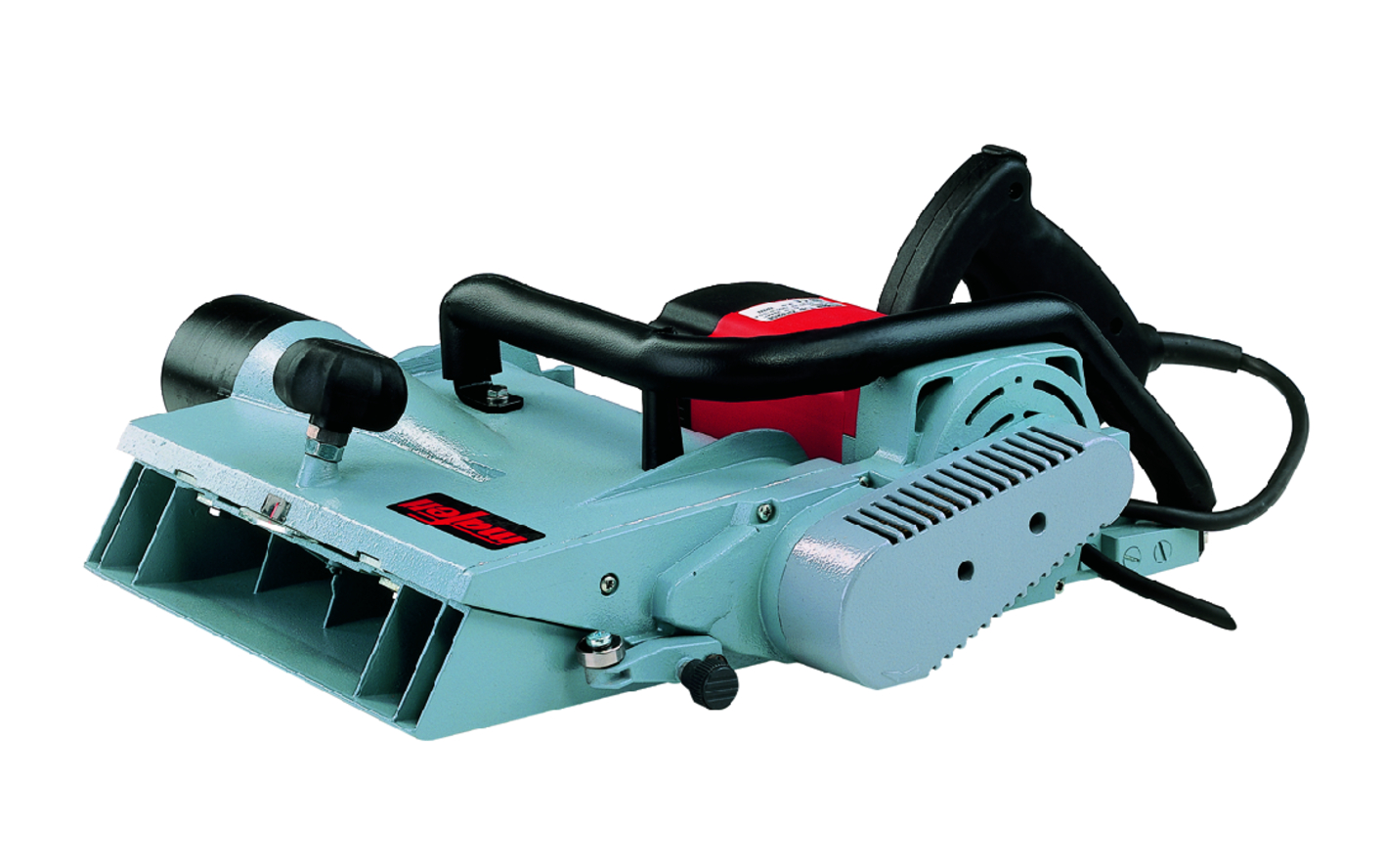

Carpentry Planing Machine ZH 320 Ec
Click to enlarge images
Descrizione:
Description:

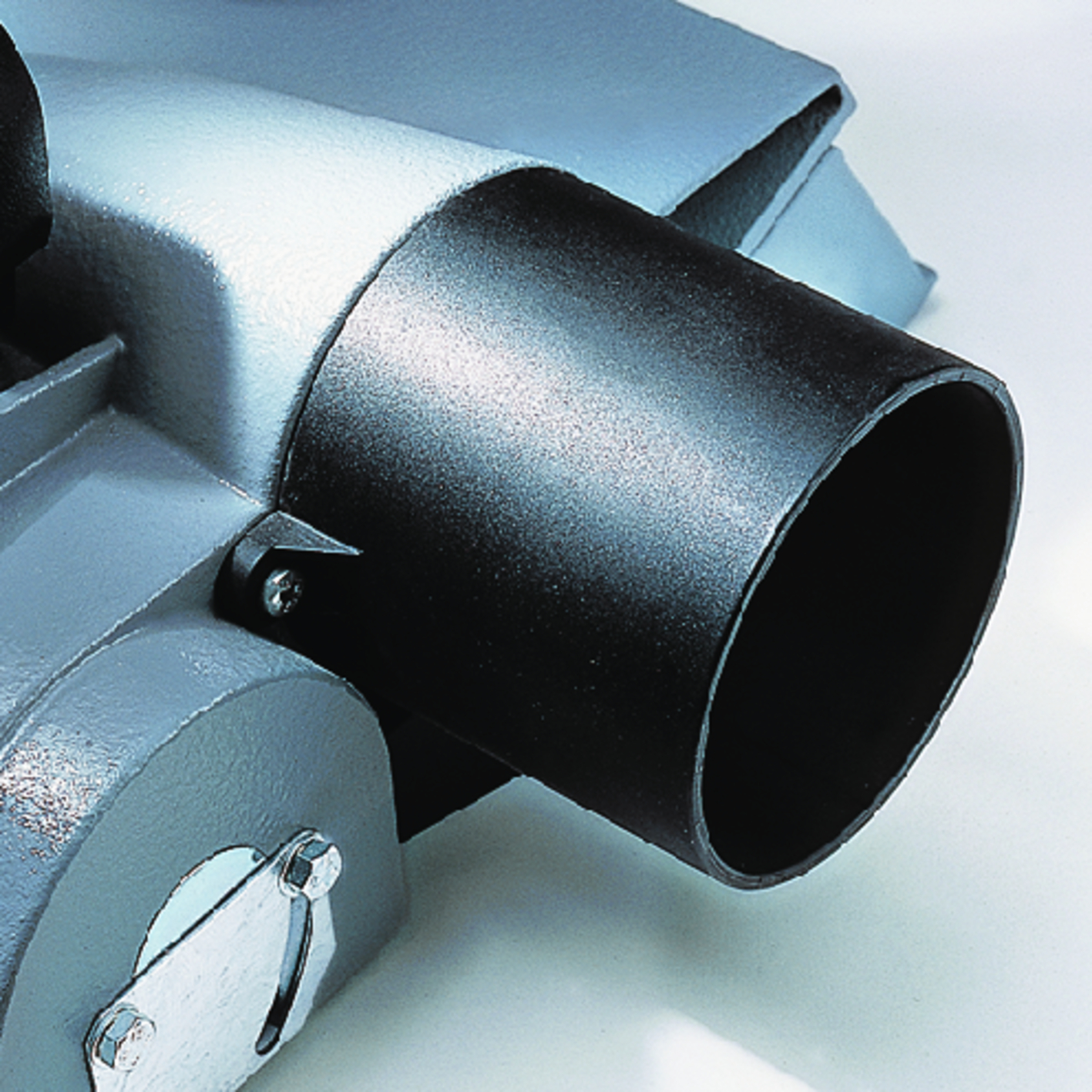

- The new chip ejector with excellent chip removal via enhanced air flow and new air duct makes blockages due to wet chips a thing of the past!
- Thanks to the development of the 2700 watt (3.6 hp) motor, it is now possible to achieve a 320 mm (12 5/8 in.) planing width with a light current motor.
- Due the consistent lightweight design, the solid cast construction weighs only 14 kg (30.9 lbs).
- As with most MAFELL machines, the intelligent control electronics keep watch in the background. For smooth start-up and constant speed under load, speed reduction to protect the machine without load and overload protection.
- After switching off, the highly efficient tool brake stops the cutter head in seconds. Just a detail, but important for your continued safety after planing.
-
Delivery specification
- 1 Reversible knives, 1 pair, HL; Ref. No. MA-091791
- 1 Single-end spanner 8 mm; Ref. No. MA-093258
- 1 Mains cable 10 m (32.8 ft); Ref. No. MA-087378
- Planing width 320 mm
- Planing depth 3 mm
- boxed
Technical Data:
| Planing width | 12 5/8 Inch |
| Planing depth | 0 - 1/8 Inch |
| Cutter head diameter | 2 15/16 Inch |
| Nominal No. of strokes – no load | 8500 1/min |
| Nominal power input | 3.6 hp |
| Weight | 30.9 lbs |
| Universal motor | 230 V / 50 Hz |
| Product | Product | Price | Buy | Description | Favorites |
|---|---|---|---|---|---|
| MA-924401 | MA-924401 | 5 819,40 € | Pialla per carpenteria ZH 320 Ec |
