Threaded drill bits for drilling machines

Nome Serie:

352-353 HW

Click to enlarge images

TECHNICAL FEATURES:

-manufactured from special high strength steel;

-cusp in HWM;

-centering tip;

-2 cutting edges (Z2);

-2 engravers (V2);

-4 helical grooves.

Application

For blind holes in solid wood and wood derivatives, including laminates. To be inserted on the spindles of drilling machines.

Adaptable to drilling machines:

Masterwood (Zangheri & Boschetti);

Morbidelli, Nottmeyer (new execution).

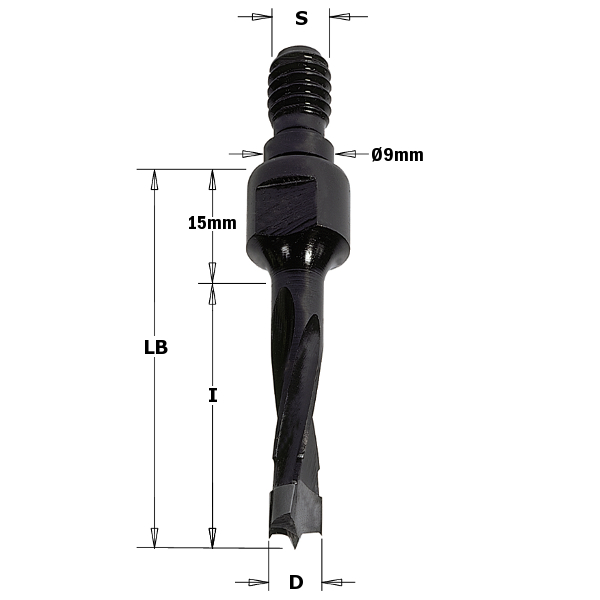

Product	Product	Price	D	I	LB	S	RH-LH
352.050.12	352.050.12	26,72 €	5	30	45	M8	LH
352.050.11	352.050.11	26,72 €	5	30	45	M8	RH
353.050.12	353.050.12	29,16 €	5	40	55	M8	LH
353.050.11	353.050.11	29,16 €	5	40	55	M8	RH
352.060.12	352.060.12	26,72 €	6	30	45	M8	LH
352.060.11	352.060.11	26,72 €	6	30	45	M8	RH
353.060.12	353.060.12	29,16 €	6	40	55	M8	LH
353.060.11	353.060.11	29,16 €	6	40	55	M8	RH
352.080.12	352.080.12	27,89 €	8	30	45	M8	LH
352.080.11	352.080.11	27,89 €	8	30	45	M8	RH
353.080.12	353.080.12	30,42 €	8	40	55	M8	LH
353.080.11	353.080.11	30,42 €	8	40	55	M8	RH
352.100.12	352.100.12	27,89 €	10	30	45	M8	LH
352.100.11	352.100.11	27,89 €	10	30	45	M8	RH
353.100.12	353.100.12	30,42 €	10	40	55	M8	LH
353.100.11	353.100.11	30,42 €	10	40	55	M8	RH
352.120.12	352.120.12	30,42 €	12	30	45	M8	LH
352.120.11	352.120.11	30,42 €	12	30	45	M8	RH
353.120.12	353.120.12	32,79 €	12	40	55	M8	LH
353.120.11	353.120.11	32,79 €	12	40	55	M8	RH

*All the prices include 22% Italian VAT
