T" grooving cutters
Nome Serie:
8/950.601-602
Click to enlarge images

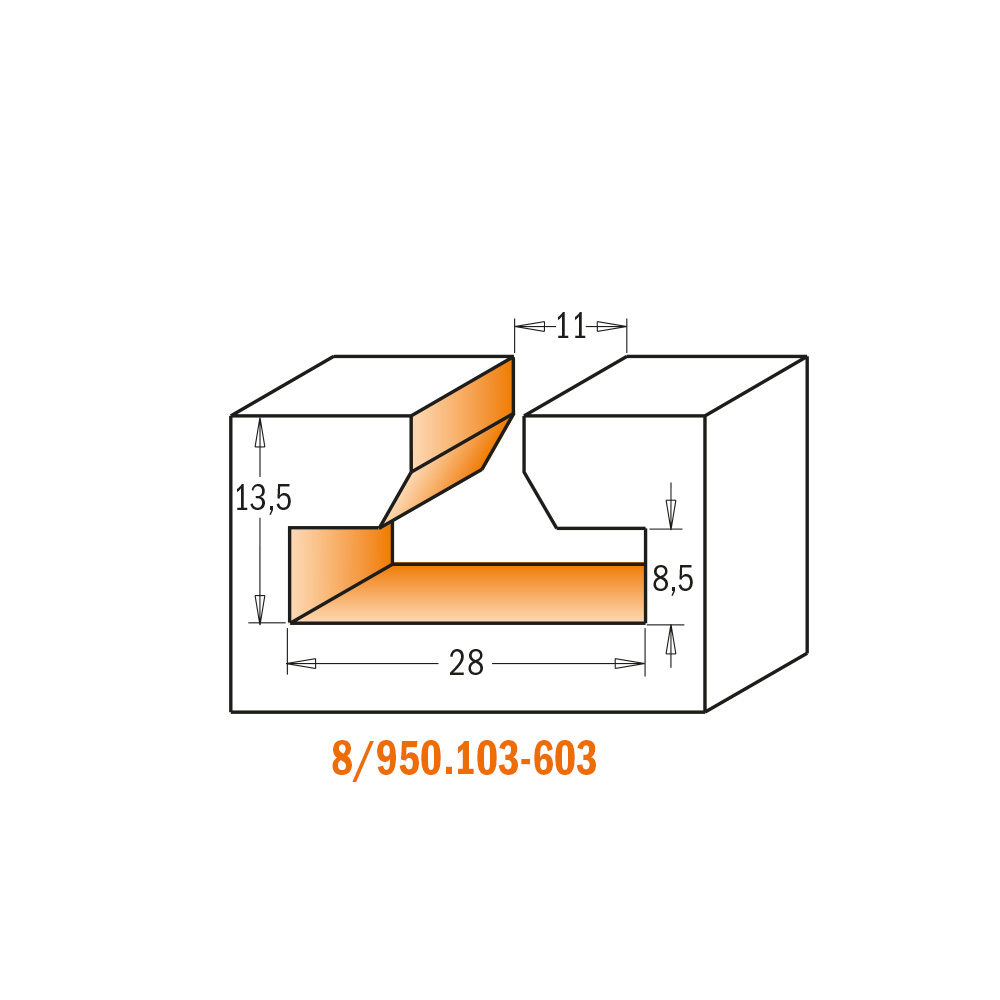

T-groove cutters allow you to apply frames, plates or wood decorations perfectly flush with the walls. First, the tool makes the entry hole. As the router advances, the smaller diameter (d) cuts a slot, and the larger diameter (D) mills a larger slot under the surface.
Safety Recommendations: before using the cutters, clamp the workpiece to the bench and carefully attach the cutter to the pantograph.
Tips: hang objects with only one hook, mill a horizontal slot; this will allow you to center and balance them perfectly on the wall.
The drawing refers to articles:8/950.601.11.
Complimentary "Formula 2050" vial with every order.
| Product | Product | Price | Buy | D | d | I | L | Z | S | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| 950.103.11 | 950.103.11 | 46,23 € | 28 | 11 | 13.5 | 47.6 | 2 | 8 | ||
| 950.603.11 | 950.603.11 | 46,99 € | 28 | 11 | 13,5 | 56,3 | 2 | 12 | ||
| 850.603.11 | 850.603.11 | 46,99 € | 28 | 11 | 13,5 | 56,3 | 2 | 12,7 | ||
| 950.101.11 | 950.101.11 | 46,23 € | 30 | 9.5 | 17.5 | 50.8 | 2 | 8 | ||
| 950.601.11 | 950.601.11 | 46,99 € | 30 | 9,5 | 17,5 | 60,3 | 2 | 12 | ||
| 850.601.11 | 850.601.11 | 46,99 € | 30 | 9,5 | 17,5 | 60,3 | 2 | 12,7 | ||
| 950.604.11 | 950.604.11 | 56,45 € | 32 | 15 | 20 | 66 | 1+1 | 12 | ||
| 950.602.11 | 950.602.11 | 56,45 € | 34,9 | 12,7 | 22,2 | 63,5 | 2 | 12 | ||
| 850.602.11 | 850.602.11 | 56,45 € | 34,9 | 12,7 | 22,2 | 63,5 | 2 | 12,7 |
*All the prices include 22% Italian VAT
