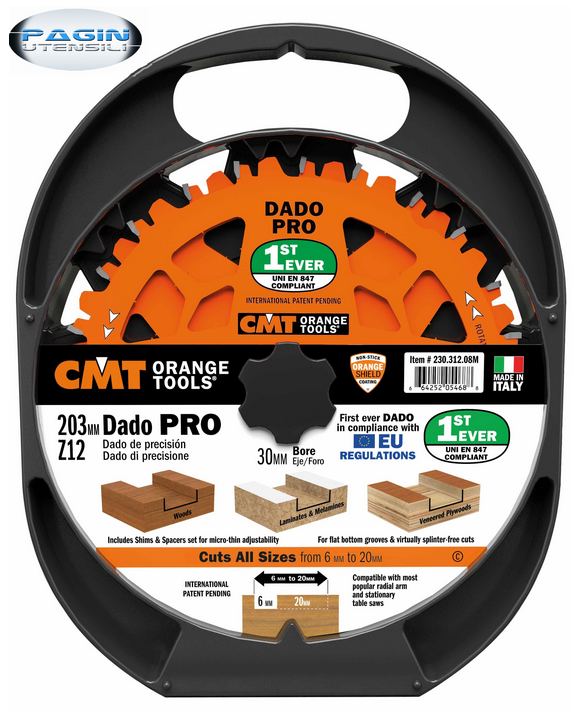

Set of blades DADO
Nome Serie:
230.5
CMT has designed a new set of blades to create precise and adjustable cuts. The result is a set of precision blades we conceived and designed according to the following features:
-anti-crack design to reduce the possibility of overfeeding that can occur when machining bulk material;
-splinter-proof cuts on veneer, melamine and hard or soft wood; in this regard CMT also offers a 2.4mm blade, specially designed for cuts on small plywood;
-internal blades with 2 or 4 teeth that keep the cut perfectly flat;
-set of thicknesses to obtain cuts between 6.35mm and 23mm.
The technical drawing refers to the internal blades.
L = Left blade.
R = Right blade.
| Product | Product | Price | Buy | D | F | Z | K | a | b | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| 230.520.06 | 230.520.06 | 210,89 € | 150 | 15,87 | 20 | 6,35-22,23 | -5° | FTG+ATB | ||
| 230.012.08 | 230.012.08 | 226,77 € | 200 | 15,87 | 12 | 6,35-20,64 | -12° | FTG+ATB | ||
| 230.524.08 | 230.524.08 | 308,14 € | 200 | 15,87 | 24 | 6,35-22,23 | -5° | FTG+ATB | ||
| 230.312.08M | 230.312.08M | 247,60 € | 203 | 30 | 12 | 6,00-20,00 | -5° | FTG+ATB |
Spare Parts
Lame interne*All the prices include 22% Italian VAT
