Quick connect drill bits for through holes
Nome Serie:
314.21/22 HWM
TECHNICAL FEATURES:
-high strength special steel attachment;
-helical body made of super micrograin carbide of superior quality;

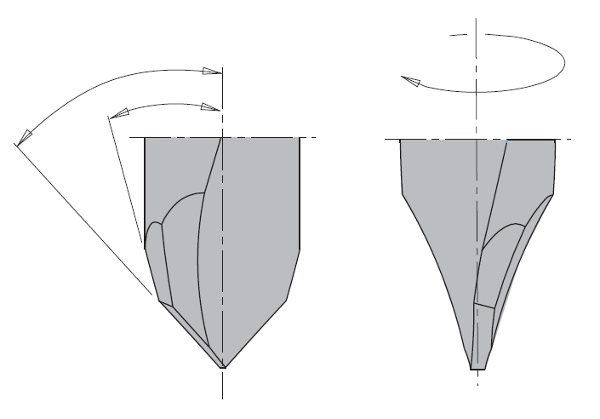

-2 double angle cutting edges (Z2);
-2 helical grooves;
-2 reinforced sharpening engravers (V2);
-attachment with clamping plate and screw for axial adjustment.
Application
For through holes in solid wood and wood derivatives, including laminates. To be inserted on spindles or adapters in drilling machines.
For panels with a maximum thickness of 30mm.

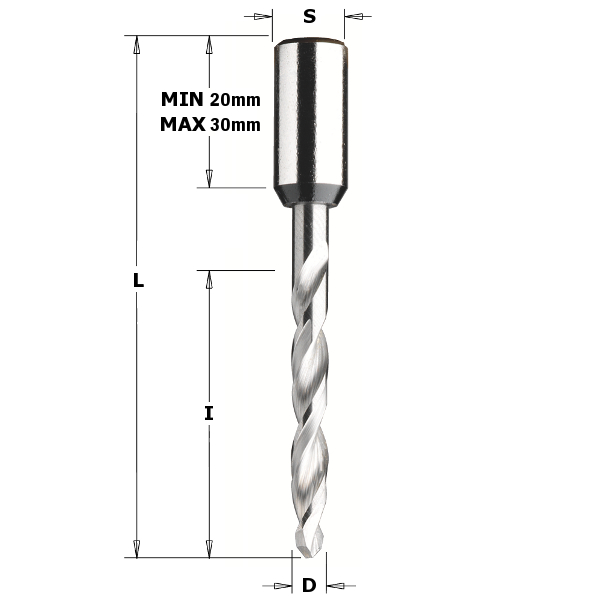

| Product | Product | Price | Buy | D | I | L | S | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|
| 314.030.22 | 314.030.22 | 25,36 € | 3 | 27 | 70 | 10x30 | LH | ||
| 314.030.21 | 314.030.21 | 25,36 € | 3 | 27 | 70 | 10x30 | RH | ||
| 314.040.22 | 314.040.22 | 26,21 € | 4 | 40 | 70 | 10x20 | LH | ||
| 314.040.21 | 314.040.21 | 26,21 € | 4 | 40 | 70 | 10x20 | RH | ||
| 314.050.22 | 314.050.22 | 27,81 € | 5 | 40 | 70 | 10x20 | LH | ||
| 314.050.21 | 314.050.21 | 27,81 € | 5 | 40 | 70 | 10x20 | RH | ||
| 314.060.22 | 314.060.22 | 32,46 € | 6 | 40 | 70 | 10x20 | LH | ||
| 314.060.21 | 314.060.21 | 32,46 € | 6 | 40 | 70 | 10x20 | RH | ||
| 314.080.22 | 314.080.22 | 47,08 € | 8 | 40 | 70 | 10x20 | LH | ||
| 314.080.21 | 314.080.21 | 47,08 € | 8 | 40 | 70 | 10x20 | RH |
Spare Parts
Vite STIC
Adattatore opzionale per macchine Weeke*All the prices include 22% Italian VAT
