Quick connect drill bits for hinges
Nome Serie:
317 DP
TECHNICAL FEATURES:
-manufactured with high strength special steel;
-centering tip DP;
-2 DP cutting edges (Z2);
-diamond drill bit;
-2 negative sharpening engravers (V2);
-attachment with clamping plate and screw for axial adjustment;
-With or without chip breaker.
Application

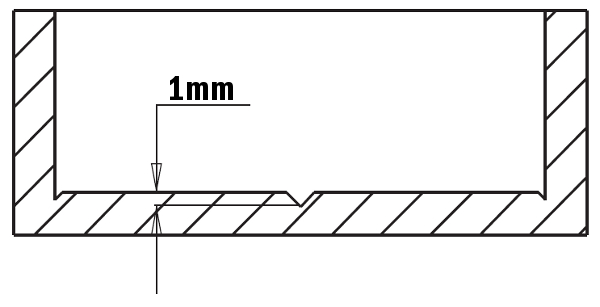

For blind holes in solid wood and its derivatives, including laminates. Ideal for creating hinge seats.. To be inserted on spindles or adapters in drilling machines.
| Product | Product | Price | Buy | D | L | S | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|

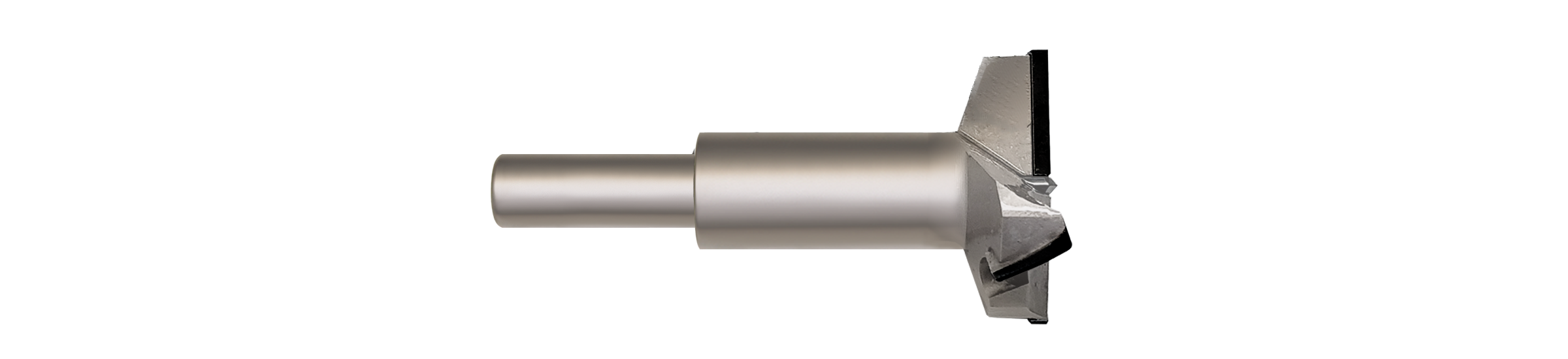

| PFO7004002R | PFO7004002R | 147,75 € | 12 | 57,5 | 10 | RH | ||
| PFO7004004R | PFO7004004R | 147,75 € | 12 | 70 | 10 | RH | ||
| PFO7004006R | PFO7004006R | 147,75 € | 14 | 57,5 | 10 | RH | ||
| PFO7004008R | PFO7004008R | 147,75 € | 14 | 70 | 10 | RH | ||
| PFO7004010R | PFO7004010R | 147,75 € | 15 | 57,5 | 10 | RH | ||
| PFO7004012R | PFO7004012R | 147,75 € | 15 | 70 | 10 | RH | ||
| PFO7004014R | PFO7004014R | 147,75 € | 16 | 57,5 | 10 | RH | ||
| PFO7004016R | PFO7004016R | 147,75 € | 16 | 70 | 10 | RH | ||
| PFO7004018R | PFO7004018R | 147,75 € | 18 | 57,5 | 10 | RH | ||
| PFO7004020R | PFO7004020R | 147,75 € | 18 | 70 | 10 | RH | ||
| PFO7004022R | PFO7004022R | 147,75 € | 20 | 57,5 | 10 | RH | ||
| PFO7004024R | PFO7004024R | 147,75 € | 20 | 70 | 10 | RH | ||
| PFO7004026R | PFO7004026R | 147,75 € | 22 | 57,5 | 10 | RH | ||
| PFO7004028R | PFO7004028R | 147,75 € | 22 | 70 | 10 | RH | ||
| PFO7004030R | PFO7004030R | 168,90 € | 25 | 57,5 | 10 | RH | ||
| PFO7004032R | PFO7004032R | 168,90 € | 25 | 70 | 10 | RH | ||
| PFO7004034R | PFO7004034R | 168,90 € | 26 | 57,5 | 10 | RH | ||
| PFO7004036R | PFO7004036R | 168,90 € | 26 | 70 | 10 | RH | ||
| PFO7004038R | PFO7004038R | 168,90 € | 30 | 57,5 | 10 | RH | ||
| PFO7004040R | PFO7004040R | 168,90 € | 30 | 70 | 10 | RH | ||
| PFO7004042R | PFO7004042R | 168,90 € | 35 | 57,5 | 10 | RH | ||
| PFO7004044R | PFO7004044R | 168,90 € | 35 | 70 | 10 | RH | ||
| PFO7004046R | PFO7004046R | 168,90 € | 40 | 57,5 | 10 | RH | ||
| PFO7004048R | PFO7004048R | 168,90 € | 40 | 70 | 10 | RH | ||
| PFO7004001L | PFO7004001L | 147,75 € | 12 | 57,5 | 10 | LH | ||
| PFO7004003L | PFO7004003L | 147,75 € | 12 | 70 | 10 | LH | ||
| PFO7004005L | PFO7004005L | 147,75 € | 14 | 57,5 | 10 | LH | ||
| PFO7004007L | PFO7004007L | 147,75 € | 14 | 70 | 10 | LH | ||
| PFO7004009L | PFO7004009L | 147,75 € | 15 | 57,5 | 10 | LH | ||
| PFO7004011L | PFO7004011L | 147,75 € | 15 | 70 | 10 | LH | ||
| PFO7004013L | PFO7004013L | 147,75 € | 16 | 57,5 | 10 | LH | ||
| PFO7004015L | PFO7004015L | 147,75 € | 16 | 70 | 10 | LH | ||
| PFO7004017L | PFO7004017L | 147,75 € | 18 | 57,5 | 10 | LH | ||
| PFO7004019L | PFO7004019L | 147,75 € | 18 | 70 | 10 | LH | ||
| PFO7004021L | PFO7004021L | 147,75 € | 20 | 57,5 | 10 | LH | ||
| PFO7004023L | PFO7004023L | 147,75 € | 20 | 70 | 10 | LH | ||
| PFO7004025L | PFO7004025L | 147,75 € | 22 | 57,5 | 10 | LH | ||
| PFO7004027L | PFO7004027L | 147,75 € | 22 | 70 | 10 | LH | ||
| PFO7004029L | PFO7004029L | 168,90 € | 25 | 57,5 | 10 | LH | ||
| PFO7004031L | PFO7004031L | 168,90 € | 25 | 70 | 10 | LH | ||
| PFO7004033L | PFO7004033L | 168,90 € | 26 | 57,5 | 10 | LH | ||
| PFO7004035L | PFO7004035L | 168,90 € | 26 | 70 | 10 | LH | ||
| PFO7004037L | PFO7004037L | 168,90 € | 30 | 57,5 | 10 | LH | ||
| PFO7004039L | PFO7004039L | 168,90 € | 30 | 70 | 10 | LH | ||
| PFO7004041L | PFO7004041L | 168,90 € | 35 | 57,5 | 10 | LH | ||
| PFO7004043L | PFO7004043L | 168,90 € | 35 | 70 | 10 | LH | ||
| PFO7004045L | PFO7004045L | 168,90 € | 40 | 57,5 | 10 | LH | ||
| PFO7004047L | PFO7004047L | 168,90 € | 40 | 70 | 10 | LH | ||

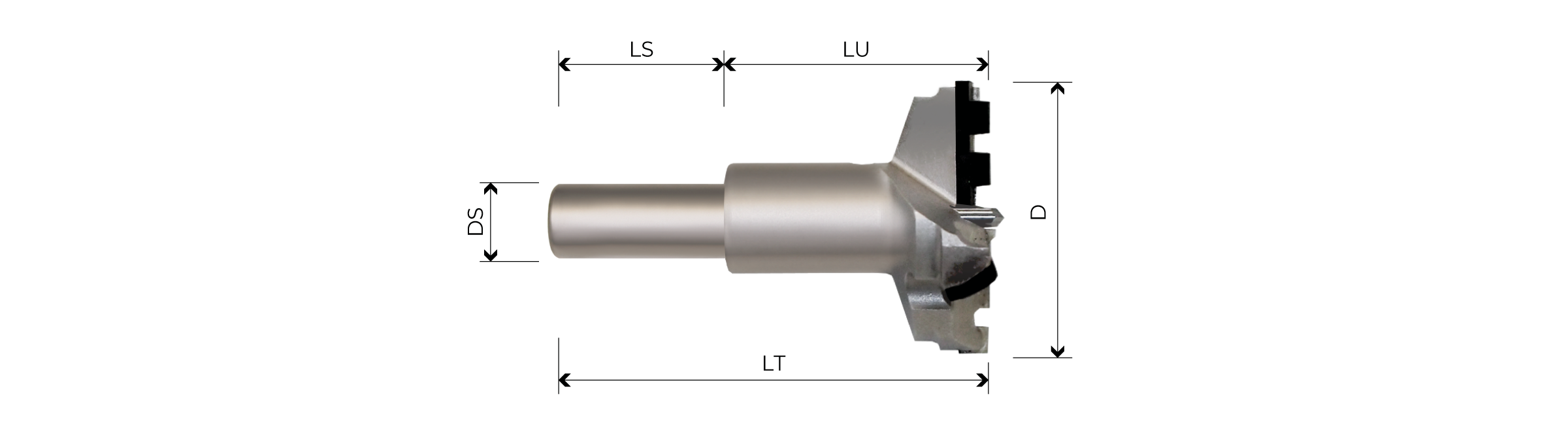

| PFO7005002R | PFO7005002R | 179,48 € | 20 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005004R | PFO7005004R | 179,48 € | 20 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005006R | PFO7005006R | 179,48 € | 22 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005008R | PFO7005008R | 179,48 € | 22 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005010R | PFO7005010R | 179,48 € | 25 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005012R | PFO7005012R | 179,48 € | 25 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005014R | PFO7005014R | 179,48 € | 26 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005016R | PFO7005016R | 179,48 € | 26 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005018R | PFO7005018R | 189,98 € | 30 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005020R | PFO7005020R | 189,98 € | 30 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005022R | PFO7005022R | 189,98 € | 35 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005024R | PFO7005024R | 189,98 € | 35 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005026R | PFO7005026R | 189,98 € | 40 | 57,5 | 10 | RH - Rompitruciolo | ||
| PFO7005028R | PFO7005028R | 189,98 € | 40 | 70 | 10 | RH - Rompitruciolo | ||
| PFO7005001L | PFO7005001L | 179,48 € | 20 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005003L | PFO7005003L | 179,48 € | 20 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005005L | PFO7005005L | 179,48 € | 22 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005007L | PFO7005007L | 179,48 € | 22 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005009L | PFO7005009L | 179,48 € | 25 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005011L | PFO7005011L | 179,48 € | 25 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005013L | PFO7005013L | 179,48 € | 26 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005015L | PFO7005015L | 179,48 € | 26 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005017L | PFO7005017L | 189,98 € | 30 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005019L | PFO7005019L | 189,98 € | 30 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005021L | PFO7005021L | 189,98 € | 35 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005023L | PFO7005023L | 189,98 € | 35 | 70 | 10 | LH - Rompitruciolo | ||
| PFO7005025L | PFO7005025L | 189,98 € | 40 | 57,5 | 10 | LH - Rompitruciolo | ||
| PFO7005027L | PFO7005027L | 189,98 € | 40 | 70 | 10 | LH - Rompitruciolo |
Spare Parts
Vite STIC
Adattatore opzionale per macchine Weeke*All the prices include 22% Italian VAT
