Polycrystalline straight cutters Z2

Click to enlarge images

TECHNICAL FEATURES:

-Z2 diamond cutter;

-Cutter body in integral widia;

-Polycrystalline DP cutters;

-resharpenable cutters;

-feed speed 3~10m/minute.

Application

Excellent for machining chipboard, MDF, plywood, knotless hardwoods and polymeric materials.

For machining compact materials such as HDF, HPL, carbon fiber panels, trespa and corian

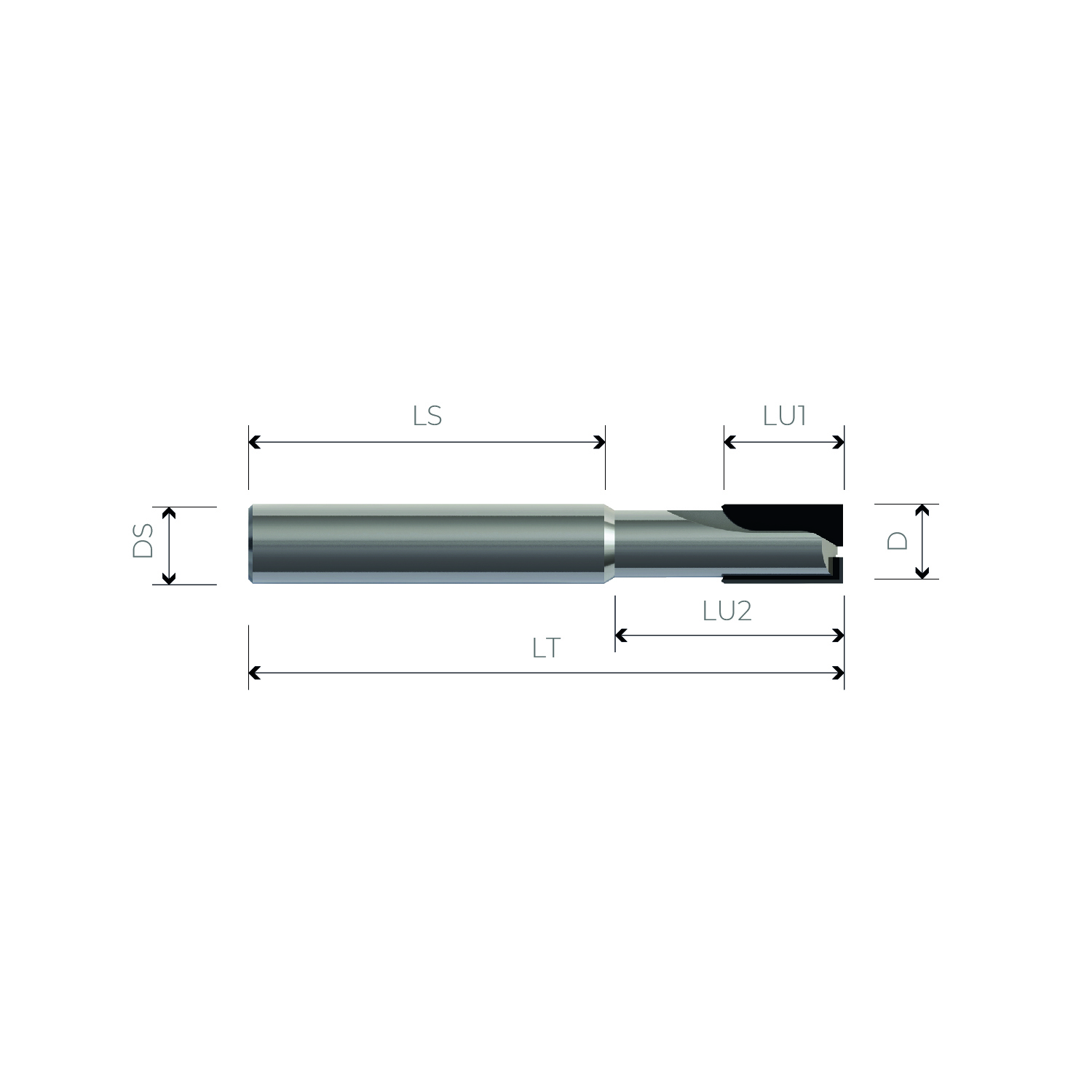

Product	Product	Price	D	I	I1	L	Z	S
FPD2004030	FPD2004030	106,83 €	6	12	14	60	2 / 0°	6
FPD2004002	FPD2004002	140,02 €	8	12	24	70	2 / 0°	8
FPD2004006	FPD2004006	160,41 €	8	15	24	70	2 / 0°	8
FPD2004016	FPD2004016	168,03 €	10	15	28	75	2 / 0°	10
FPD2004022	FPD2004022	201,87 €	10	20	28	75	2 / 0°	10
FPD2004032	FPD2004032	234,20 €	10	25	28	75	2 / 0°	10
FPD2004026	FPD2004026	185,54 €	12	15	28	75	2 / 0°	12
FPD2004028	FPD2004028	214,62 €	12	20	28	75	2 / 0°	12
FPD2004034	FPD2004034	246,96 €	12	25	28	75	2 / 0°	12
FPD2006002	FPD2006002	119,70 €	8	12	24	70	2 / -6°	8
FPD2006006	FPD2006006	137,63 €	8	15	24	70	2 / -6°	8
FPD2006030	FPD2006030	176,03 €	8	20	22	70	2 / -4°	12
FPD2006016	FPD2006016	147,75 €	10	15	28	75	2 / -8°	10
FPD2006018	FPD2006018	149,31 €	10	15	28	75	2 / -8°	12
FPD2006022	FPD2006022	187,00 €	10	20	28	75	2 / -5°	10
FPD2006032	FPD2006032	210,41 €	10	25	28	75	2 / -5°	10
FPD2006026	FPD2006026	157,31 €	12	15	28	75	2 / -8°	12
FPD2006028	FPD2006028	183,92 €	12	20	28	75	2 / -8°	12
FPD2006034	FPD2006034	207,38 €	12	25	28	75	2 / -6°	12
FPD2046006	FPD2046006	115,81 €	8	15	24	70	2 / 4°+/-	8
FPD2046016	FPD2046016	123,91 €	10	15	24	75	2 / 6°+/-	10
FPD2046030	FPD2046030	157,76 €	10	25	29	75	2 / 4°+/-	10
FPD2046026	FPD2046026	132,22 €	12	15	24	75	2 / 6°+/-	12
FPD2046028	FPD2046028	154,62 €	12	20	24	75	2 / 5°+/-	12
FPD2046032	FPD2046032	172,14 €	12	25	29	75	2 / 4°+/-	12

*All the prices include 22% Italian VAT
