Knife heads for doors, profile and counter-profile
Nome Serie:
694.014

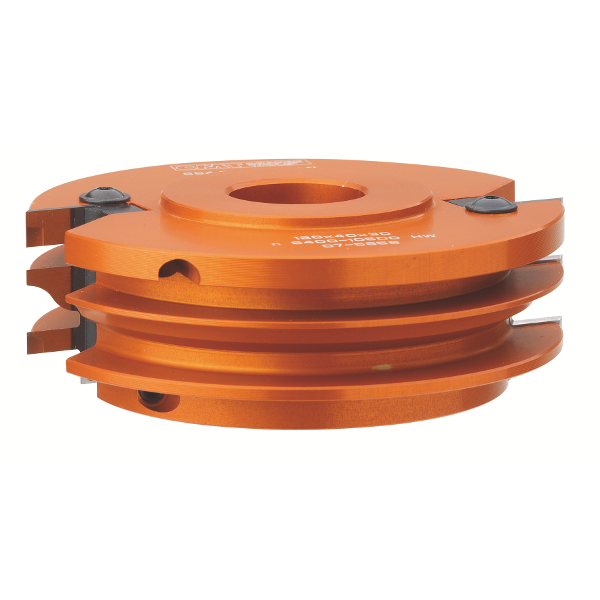

These cutter heads represent the union of two cutters in one tool and are the ideal tools for the construction of doors and drawers. By adjusting the height of the head, you can cut two profiles that match perfectly without wasting time or effort moving the guide or changing the tool. Save money by investing in a single CMT cutting head and you'll also improve production efficiency.
TECHNICAL FEATURES:
-hard aluminum alloy body with high resistance to tensile and bending forces;

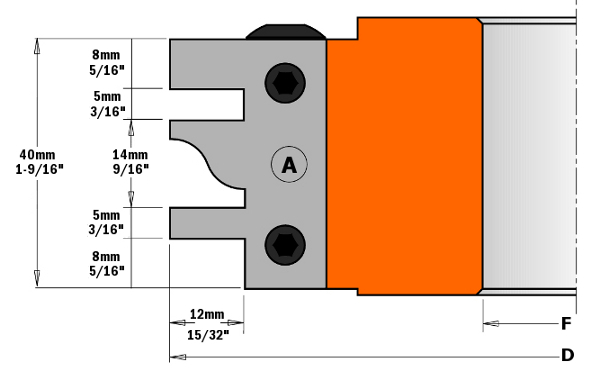

-2 HWM knives type (A) 40x24,5x2mm [Z2];
-tools for manual feed (MAN);
-Pins for automatic positioning of knives.
Sold in a practical and sturdy plastic package.
Application

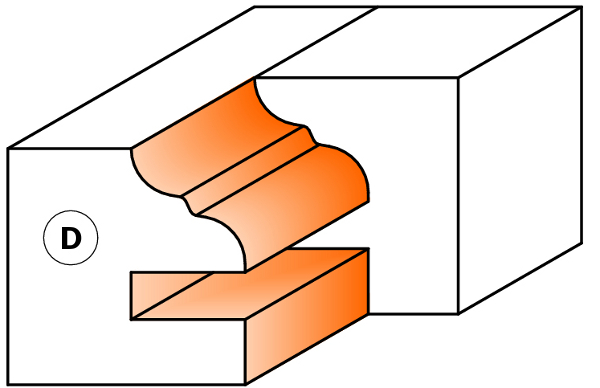

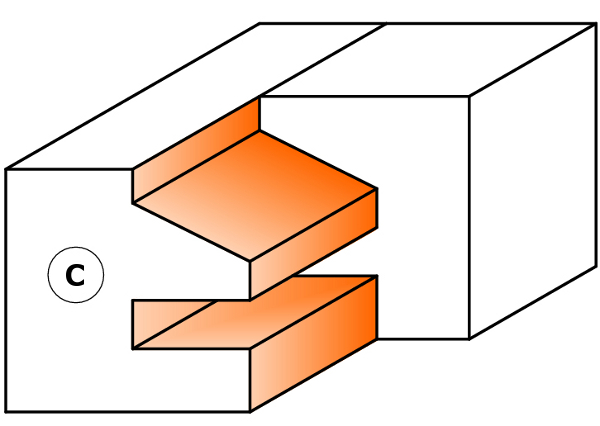

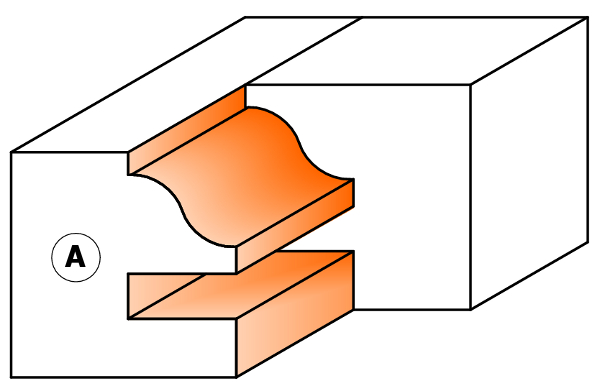

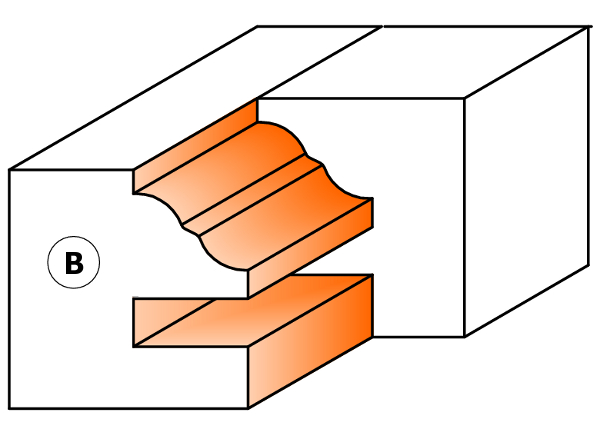

Use: to realize profiles and counter-profiles.
Machines: spindle moulder and combination machines.
Material: perfect results on all materials, ideal for hardwoods and panels.
IMPORTANT RECOMMENDATIONS:

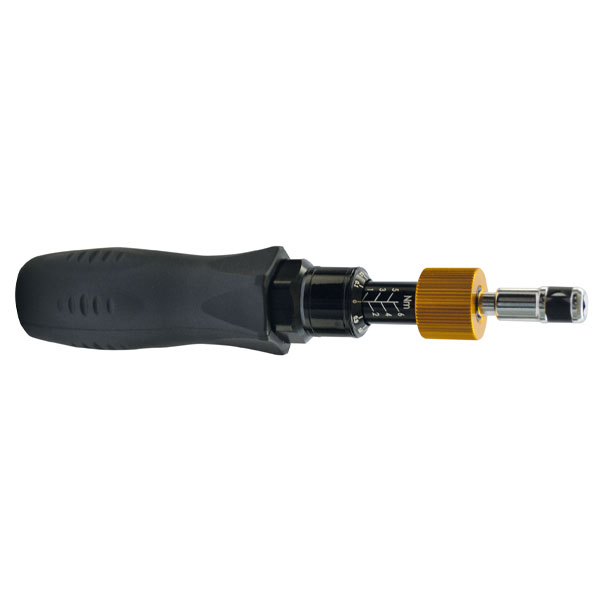

We recommend the use of the TW-006 torque screwdriver for tightening the screws.
| Product | Product | Price | Buy | D | F | Z | RPM | Description | Favorites |
|---|---|---|---|---|---|---|---|---|---|
| 694.014.30 | 694.014.30 | 242,65 € | 120 | 30 | 2 | 6400~10500 | |||
| 694.014.31 | 694.014.31 | 242,65 € | 120 | 31,75 | 2 | 6400~10500 | |||
| 694.014.35 | 694.014.35 | 242,65 € | 120 | 35 | 2 | 6400~10500 | |||
| 694.014.40 | 694.014.40 | 242,65 € | 120 | 40 | 2 | 6400~10500 | |||
| 694.014.50 | 694.014.50 | 246,72 € | 130 | 50 | 2 | 5900~9700 |
Spare Parts
Cuneo
Vite STEI con perno
Chiave esagonale
Coppia di coltelli
Coppia di coltelli (opzionale) *All the prices include 22% Italian VAT
