Elastic clamps "ER20" for items 796.122/142/162
Nome Serie:
184.xxx.20
Click to enlarge images
TECHNICAL FEATURES:

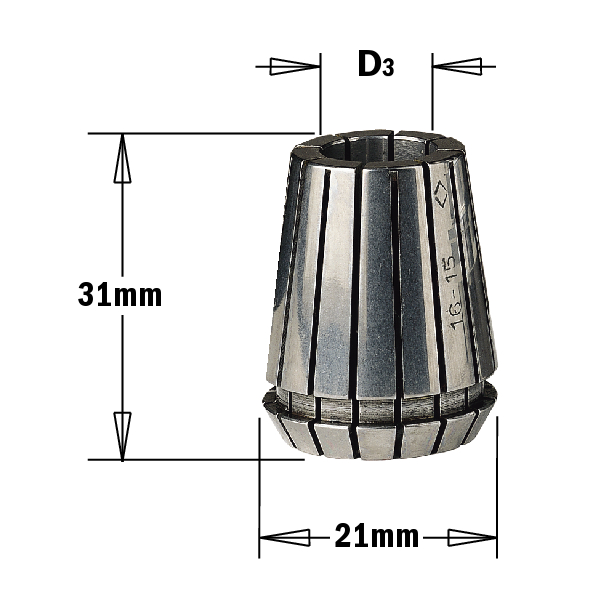

-interchangeable bi-conical Std ER20" collets (2mm to 13mm diameter) with interspersed and opposed axial notches for integral cylindrical tool clamping;
-extensive clamping range below the nominal collet diameter +0-0.7mm;
-adaptable to most conical chucks;
-rotation accuracy 0,015mm.
NOTE: other sizes are available upon request.
| Product | Product | Price | Buy | D3 | Favorites |
|---|---|---|---|---|---|
| 184.020.20 | 184.020.20 | 24,85 € | Pinza Ø 2 | ||
| 184.030.20 | 184.030.20 | 24,85 € | Pinza Ø 3 | ||
| 184.040.20 | 184.040.20 | 24,85 € | Pinza Ø 4 | ||
| 184.050.20 | 184.050.20 | 24,85 € | Pinza Ø 5 | ||
| 184.060.20 | 184.060.20 | 24,85 € | Pinza Ø 6 | ||
| 184.064.20 | 184.064.20 | 24,85 € | Pinza Ø 6,35 | ||
| 184.070.20 | 184.070.20 | 24,85 € | Pinza Ø 7 | ||
| 184.080.20 | 184.080.20 | 24,85 € | Pinza Ø 8 | ||
| 184.090.20 | 184.090.20 | 24,85 € | Pinza Ø 9 | ||
| 184.100.20 | 184.100.20 | 24,85 € | Pinza Ø 10 | ||
| 184.110.20 | 184.110.20 | 24,85 € | Pinza Ø 11 | ||
| 184.120.20 | 184.120.20 | 24,85 € | Pinza Ø 12 | ||
| 184.127.20 | 184.127.20 | 24,85 € | Pinza Ø 12,7 |
*All the prices include 22% Italian VAT
