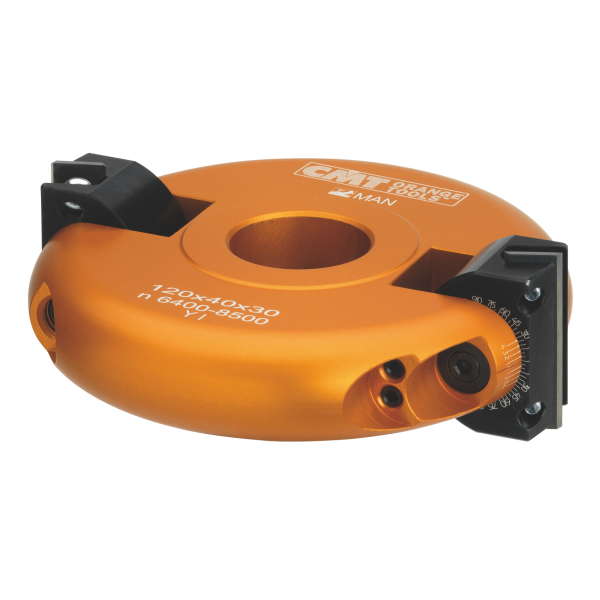

Adjustable knife heads for chamfering

Nome Serie:

694.018

Click to enlarge images

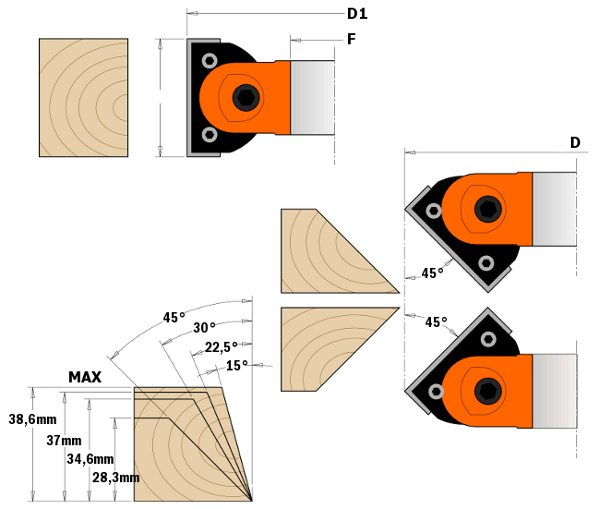

Adjustable knife heads for chamfering  - technical drawing

Dynamometric screwdriver TW-006

TECHNICAL FEATURES:

-hard aluminum alloy body with high resistance to tensile and bending forces;

-2 knives HWM 40x12x1,5mm [Z2];

-tools for manual feed (MAN);

-positive clamping of HWM knives.

Body adjustable on both sides from 0 to 90° with positive clamping every 7,5°, thanks to the sophisticated mechanism with which the tool is equipped.

Application

Use: to perform precise cuts, accurate chamfering and grooving.

Machines: spindle moulders, combined machines and moulding machines.

Material: solid wood boards.

IMPORTANT RECOMMENDATIONS:

For tightening the screws, it is recommended to use the dynamometric screwdriver TW-006.

Product	Product	Price	D1	D	I	F	Z	RPM
694.018.30	694.018.30	360,18 €	120	140	40	30	2	7000-9000
694.018.35	694.018.35	360,18 €	120	140	40	35	2	7000-9000
694.018.40	694.018.40	428,03 €	145	165	40	40	2	4800-7200
694.018.50	694.018.50	439,19 €	145	165	40	50	2	4800-7200
